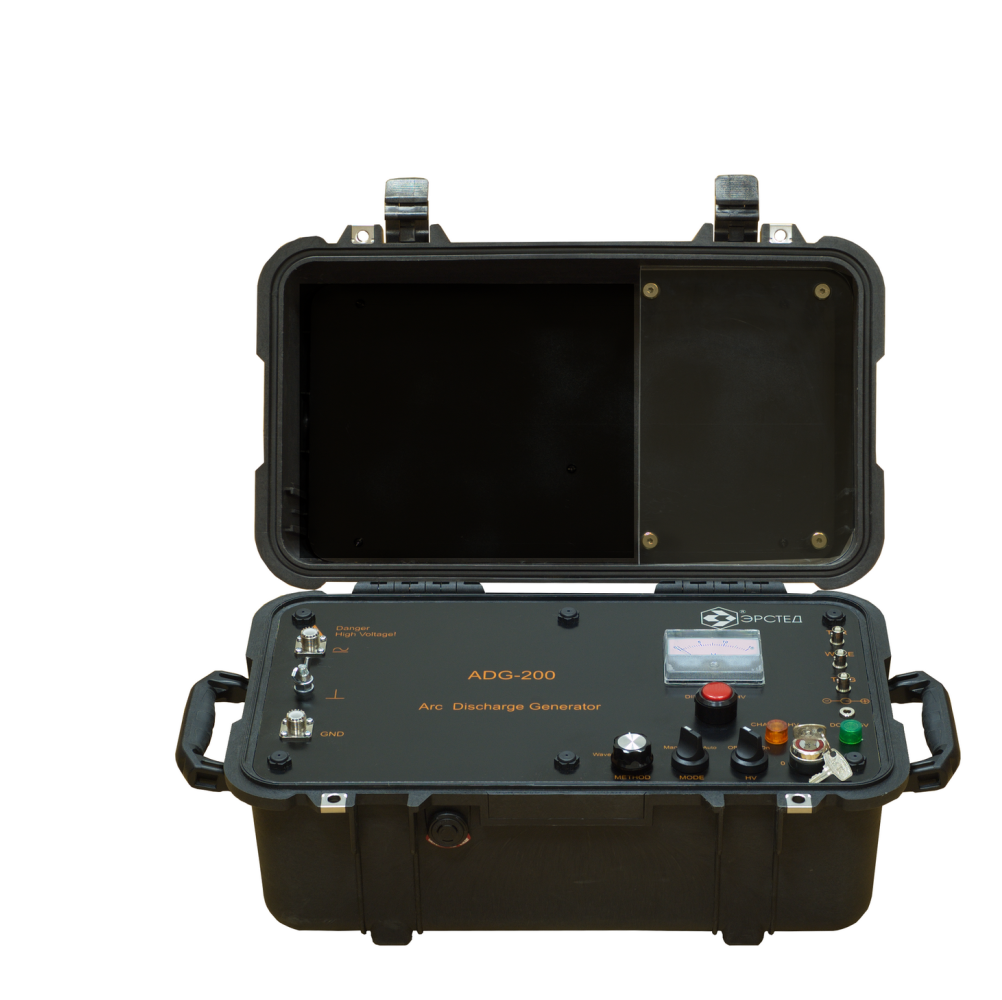

Ersted ADG-200 Arc Discharge Generator (0-10kV)
Features:
- Completely self-powered device;
- Small size - a complex of free fits into a car trunk
- Light weight
Specifications:
- Output voltage range: 0-10kV
- Levels of output voltage: 4kV, 10kV
- Charge modes: + Direct charge of the cable (AUTO), for leakage current <10mA
+ Charge the built-in capacitor (MANUAL), for leakage current >10mA
- Embedded storage capacitors: 4µF/10kV
- Maximum stored energy: 200J
- Arc stabilization time: 1ms-10ms (depends on external conditions)
- Maximum allowable pulse voltage on all low-voltage connectors, designed for connection to the TDR
+ on the TDR connector: 60V;
+ on the WAVE connector: 120V;
+ on the TRIG connector: 20V
- Power supply: Autonomous (battery)
- The number of “shots” on a fully charged battery: 100
- Operating temperature range: from -20°C to +40°C
- Dimensions: 520x320x300mm
- Weight: 17kg (without battery)
