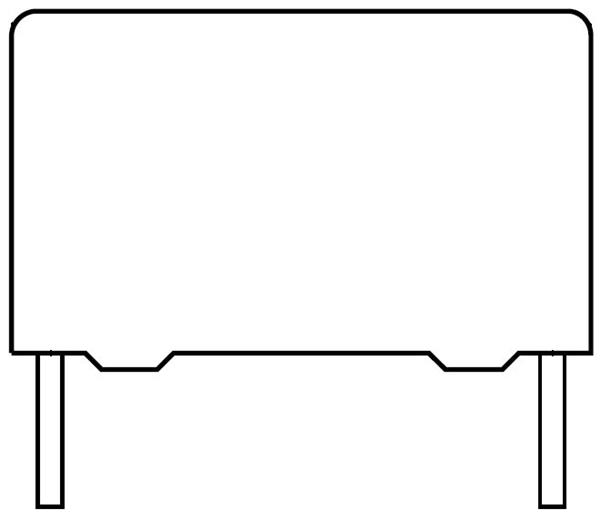

EPCOS B32529C1104K000 ຄອງເຊັນໄຟລ໌ທົ່ວໄປ 0.1uF 100V 10%

Life: 200000 Hour

Width: 2.5 mm (0.098 in)

Height: 6.5 mm (0.256 in)

Length: 7.3 mm (0.287 in)

Diameter: 0.1 in

Tolerance: 10 %

Dielectric: Polyethylene Terephthalate (PET)

Lead Style: Straight

Capacitance: 0.1 uF

Unit Weight: 218 mg

Lead Spacing: 5 mm (0.197 in)

Lead Diameter: 0.5 mm

Qualification: AEC-Q200

Number of Pins: 2 Pin

Capacitance - nF: 100 nF

Capacitance - pF: 100000 pF

Termination Style: Wire

Voltage Rating AC: 63 VAC

Voltage Rating DC: 100 VDC

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 55 C
