Qty. Part # Description
(1) A-2000 Automatic Data Logging Console
(1) A-2000-PC PC Compatible Laptop With Custom Software
(1) P0523-101Q Enclosed Housing Pump with Brass Quick Connects
(1) M5-CTC Console Transport Case
(1) M5-SC6 Modular Sample Case, Hot Box and 6 Impinger Cold Box
(1) PRA-S3 Heated Stainless Steel LIned Probe Assembly, 3' Effective
(1) PRA-S5 Heated Stainless Steel LIned Probe Assembly, 5' Effective
(1) PRA-S7 Heated Stainless Steel LIned Probe Assembly, 7' Effective
(2) PRL-P3 Pyrex Probe Liner, 3' Effective, #28 Ball With O-Ring
(2) PRL-P5 Pyrex Probe Liner, 5' Effective, #28 Ball With O-Ring
(2) PRL-P7 Pyrex Probe Liner, 7' Effective, #28 Ball With O-Ring
(1) US-25-A Umbilical Cable 25' with Additional Pressure Lines
(1) US-50-A Umbilical Cable 50' with Additional Pressure Lines
(1) M5-UA-A Umbilical Adapter With Venturi
(1) PRNS-S Stainless Steel Nozzle Set, 7 sizes 1/8" - 1/2"
(1) GPBO-3C Professional Glassware Set with Transport Case
(1) GF3-107 Glass Fiber Filters, Box of 100
(1) M5-CK M5 Cleanup Kit in a case
(2) M5-SRS-5 Suspension Rail System
(1) M5-PMB Universal Port Mount Bracket

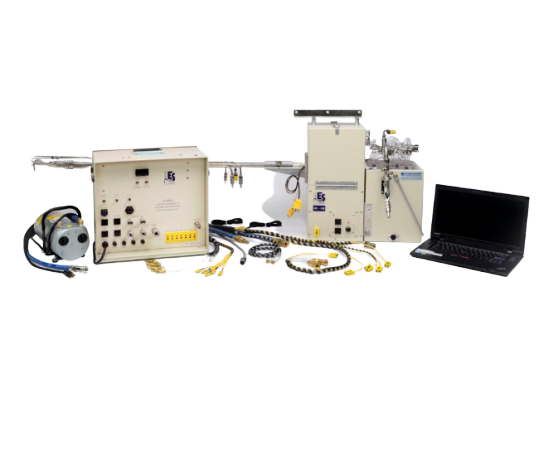

M5-A-S3 (Master)
The M5-A-S3 Master Auto Isokinetic system is designed with continuous auto data logging capabilities and uses a Venturi to monitor and signal pressure adjustments automatically. The heart of the system is the A-2000 console and utilizes field tested probe assemblies, liners, and sample cases already in use by testers. The M5-A-S3 system employs a Carbon Vane Oiless Pump and comes with additional calibration equipment, cases, umbilicals, and liners. The Auto Isokinetic M5-S3 system reduces manpower and operator error while expediting reporting.
Features
Automatic Sampling Console with Carbon Vane Oiless Pump
Transport Cases for Console
Brass Critical Orifice Set for Console Calibration
Sample Cases, including Hot Box and Impinger Box
Stainless Steel Lined Probe Assembly
Pyrex Probe Liners
Stainless Steel Nozzles
Umbilicals of different lengths with an Adapter Designed with Additional Pressure Lines
Double Set of Method 5 Glassware in a Transport Case
Cleanup Kit and Case
Nomograph or Calculator with Custom Software
Suspension Rail System
