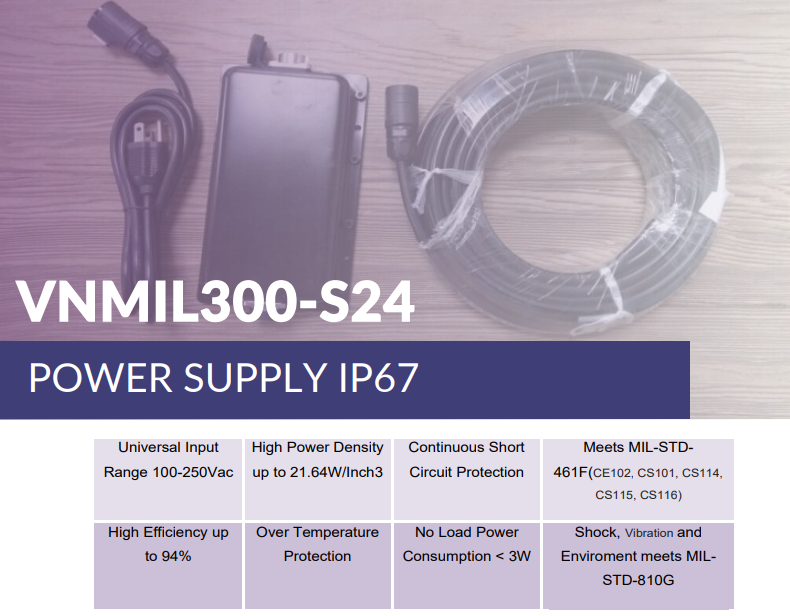

- AC Input Voltage Range: 100-250 Vac
- AC Input Frequency: 47-63 Hz
- Input Current (max): 3A max @ 115Vac; 1.5A max @240Vac
- No Load Power Consumption: 3 W
- Inrush Current: Cold start @25°C 30A max. @240Vac
- Leakage Current: 3.5 mA max
- Output Voltage: 24 Vdc
- Output Voltage Accuracy: ±5 %
- Output Current (max): 12.5 A (Natural convection)
- Output Ripple & Noise: 0.01
- Efficiency (max): 0.94
- Short Circuit Protection: Hiccup mode (Auto Recovery)
- Over Voltage Protection: Latch mode
- Isolation: Input to Output = 4000Vac (1minute)
- Hold-up Time: 16ms typ@115Vac
- Temperature Coefficient: ±0.05 %
- Over Load Protection: Yes
- Operating Temperature: -20 to +70 °C
- Storage Temperature: -40 to +85 °C
- Over Temperature Protection: Auto Recovery
- Cooling: Natural Convection-cooled
- Humidity: 98%RH max. non-condensing
- Switching Frequency: 65kHZ ±5% typ. @ Full load
- Waterproof: IP67 (After assembling the connector with power cable and output cable)
- Weight: 2.5kg ± 5% (cables inclusive)
