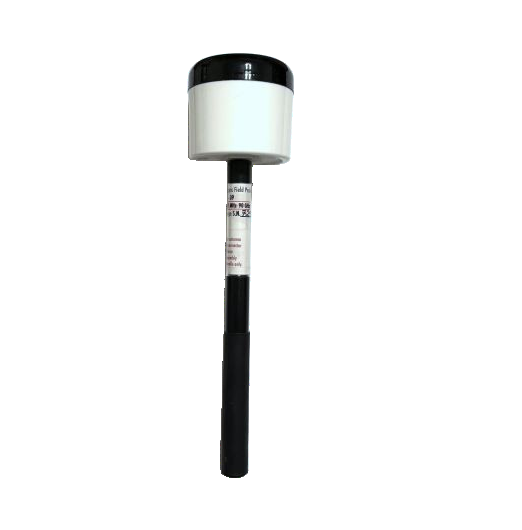

Diode-based: 3-Axial isotropic sensor.
Frequency range: 3 MHz-90 GHz.
Field strength range:
4 V/m-1000 V/m.
4 uW/cm2 – 270 mW/cm2
Linearity: +/- 1.5 dB.
Linear power RMS response up to 150V/m (6 mW/cm2)
Frequency resp. (no corr. factors):
3 MHz-1 GHz (+/-2 dB)
1-26 GHz (+6/-0 dB)
26-60 GHz (+/- 6 dB)
60-90 GHz (+0/-10 dB)
• Frequency resp, (with corr. factors): +/- 3.0 dB.
• Measurement uncertainty, including the calibration and rotational deviation +/- 4.5 dB.
Rotational isotropicity: +/-3 dB
Temperature: 5-40 °C,
• Humidity (non-condensing): RH 10-90%.
• Temperature error: 0.05 dB/°C.
• UK NPL traceable calibration.
• UKAS certified up to 75 GHz as of 1.15.2025.
• Probe size (LxD): 12.0"x2.25" (310x58 mm).
• Weight (probe and power unit): 0.17 lb (76 g).
• Operates with RFP-05M/RFP-05 meters
