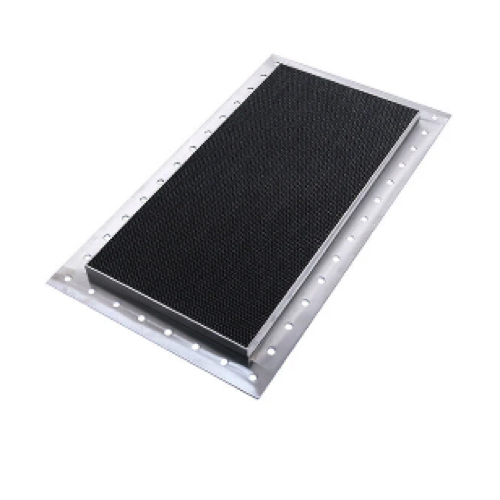

EMCPIONEER Stainless Steel Honeycomb Vent EMI Shielding Honeycomb Ven (10GHz, 18GHz, 40GHz 100dB)

Excellent for all environments.

Regular size: 300*300mm, 300*600mm, 450*450mm, 600*600mm.

Customized size acceptable.

Shielding effectiveness: up to 10GHz, 18GHz, 40GHz 100dB.

Low air-flow resistance.

Details

HHoneycomb ventilation is used to provide good airflow while ensuring electromagnetic shielding, for ventilation and heating of EMI/RF shielded rooms, anechoic chambers (antenna measurement chambers/EMC test chambers), Faraday cages or any type of shielded enclosure.

Choosing the right honeycomb ventilation panel is based on three main criteria: shielding, airflow, and installation.

Stainless steel is suitable for all environments and can be used in both civilian and military applications.

We can supply EMI honeycomb air filter with or without frame. Standard cell diameter: 1.6mm, 2.4mm, 3.2mm, 4.2mm, 5.2mm, 6.35mm. Customized cell diameter is available.

Special design: Slant honeycomb for outdoor rainproof applications.
