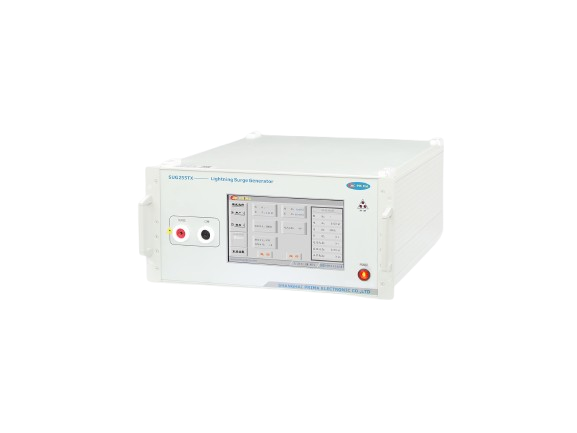

EMC Prima SUG255TX ເຄື່ອງສ້າງແຮງດັນໄຟຟ້າແບບກະຕຸ້ນ (1kV～20.0kV ±10%)

Impulse voltage: 1kV～20.0kV ±10%

Voltage resolution: 0.1V

Rise time: 1.2μs ±30%

Duration: 50μs ±20%

Output voltage polarity: + / - / +/- / -/+

Output impedance: 500Ω

Step voltage: 0～2.5KV

Interval Time: 3s～9999s

Test times: 1～9999c

Energy storage Energy: 0.5J ±10%

Failure detection: Build-in

Test product breakdown detection: Build-in

Breakdown current: 50mA～1200mA

Trigger mode: Interval trigger

PRODUCT DETAILS

Positive and negative polarity can be switched freely

One-touch switch between Chinese and English modes

10.1-inch color touch screen operation

The maximum test voltage can reach 20.0kV

Imported program-controlled high-voltage power supply, stable

Automatic switching of test mode in all gears

Built-in RJ45 and RS232 interfaces, remote control (optional)

IEC60255-5

GB14711

GB/T17626.5/IEC61000-4-5

IEC/EN 61010
