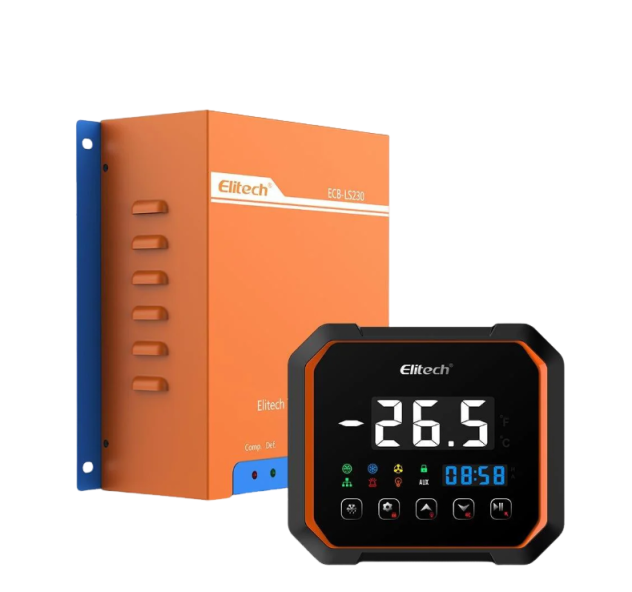

Elitech ECB-LS230-WiFi(15HP) ກະແຜນຄວບຄຸມໄຟຟ້າແບ່ງສາມໄຟ (15HP, -49℃～119℃, WiFi 2.4GHz)
ECB-LS230-Wifi: dual in-house temperature sensor input, refrigeration, defrosting, fan and buzzer alarm, WiFi 2.4GHz
Applicable compressor power: 15HP
Power Supply: 380VAC; 50/60HZ
Temperature Measurement Range: -49~119℃
Temperature Control Range: -40~119℃
Temperature Measurement Accuracy: ±1℃ (-20~50℃); ±1.5℃ (Others)
Resolution: 0.1℃/ 1℉
Current measurement range: 2~80A
Current display resolution: 0.1A
Accuracy of current detection: ±2A (0~30A), ±5% (within the nominal range of other transformers)
Compressor delay: 0~10 minutes
Output capacity of relay contacts: 5A/240VAC
Maximum allowable continuous output current of compressor circuit: 28A (15HP)
Maximum allowable continuous output current of defrosting circuit: 28A (15HP)
Maximum allowable continuous output current of fan circuit: 7A (5~15HP)
Working environment: 0℃~40℃
Sensor type: NTC (10KΩ/25℃, B value 3435K)
Sensor wire length: 3 pcs sensors at 5m/8m (including probe length)
Communication: RS-485 + Bluetooth
Network: WiFi 2.4GHz
