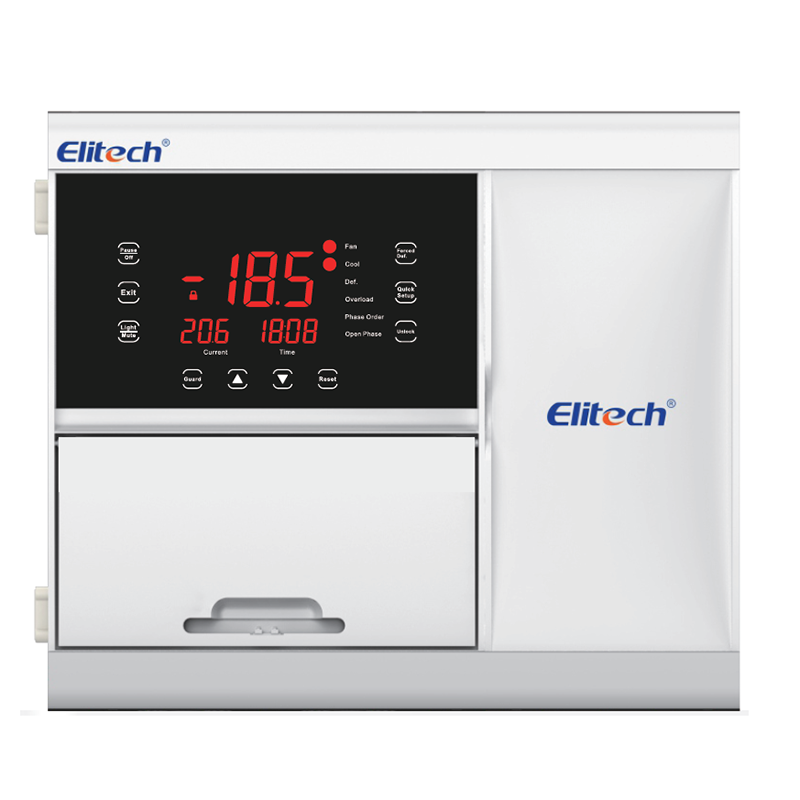

Elitech ECB-2030 ແຜງຄວບຄຸມໄຟຟ້າສາມເຟດ (0~80A)
Supply voltage: 3-phase, 5-wire or 3-phase 4-wire 380VAC±10% 50/60HZ
Applicable compressor power: 5HP, 10HP, 15HP
Condenser type: Air cooled
Defrost mode: Electric
Control range: -40℃~85℃
Control accuracy: ±1℃
Display resolution: 0.1℃
Temperature sensor type: NTC (10KΩ/25℃, B value 3435K) (sensor length 5m)
Compressor protection output delay: 1~120 min, adjustable
Current measuring range: 0~80A, equipment with instantaneous current exceeding 230A not allowed
Current measuring accuracy: ±3% (within nominal range of the transformer) and ±2A (0~30A)
Current display resolution: 0.1A
5-15HP dimensions (W*H*D): 380*329*140mm
Color: white
Service environment: temperature: -10℃~60℃; humidity: 20%~90%RH
