Elephant Robotics AI Kit 2023 ຊຸດປັນຍາປະດິດ 2023

Total measurement: 500X400X405mm

Recognition speed: 600msColor/shape/QR code: 300ms Feature points: 600ms

Recognition accuracy: 3mm

Camera name: USB distortion free camera

Image pixels: 2M 1080p

Supported image formats: MJPG/YUY2

Pixel size: 3.0umx3.0um

Maximum frame rate: MJPG：1920 1080@30fps YUV：1920 1080@30fps

USB protocol: USB2.0 HS/FS

Supported Resolutions: 1280X720,640X480,320X240

Power supply: DC5V 90mA

Field of view: 110° no distortion

Supported system: Windows XP/7/8/10/VISTA/SEVEN/MAC LINUX(include uvc)/Raspberry Pi/Android 4.2+

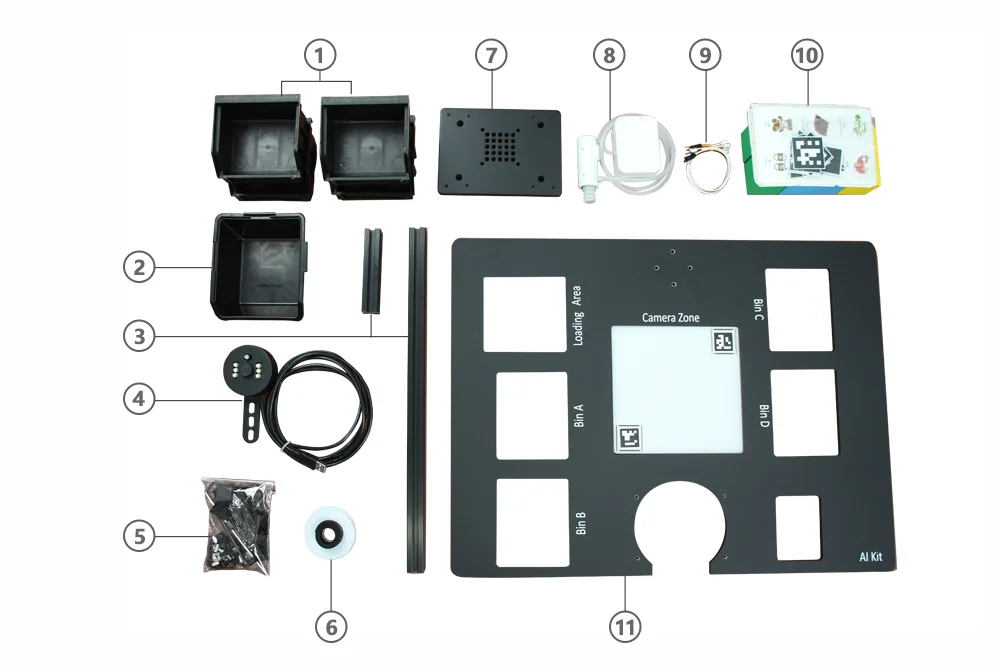

Including:

1.Small bin ×4

2. Big bin

3. Camera extrusion stand ×2

4. Camera

5. Accessories pack

6. Black and white velcro

7. Arm base

8. Suction pump

9. Suction pump connection wire

10. Image cards & Wooden blocks

11. Acrylic plate
