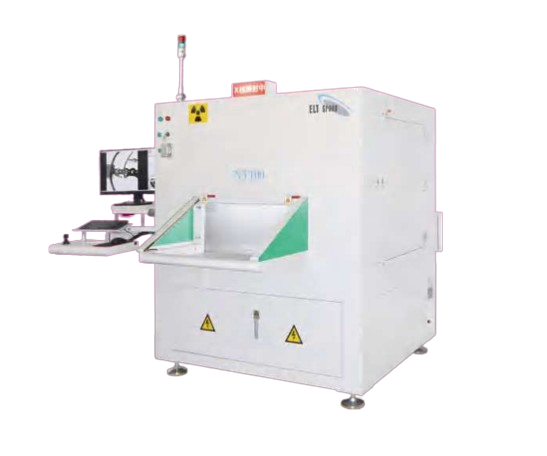

Electronicstalk NT100 ເຄື່ອງກວດຈັບ Xray ສຳລັບພວງມາໄລ

Light Tube:

Tube Type: Closed Tube

Tube Voltage: 160 kV

Tube Current: 2.5 mA

Tube Power: 50 mm (Al)

Detail Resolution: D = 0.4 mm

Cooling Method: Air Cooled

Flat Panel Detector:

Effective Imaging Area: 427 × 427 mm

Pixel Size: 139 μm

A/D Conversion: 16 bit

Sample Table:

X-Axis: 420 mm

Y-Axis: 480 mm

Z-Axis: 360 mm

R-Axis: Horizontal 360° rotation

Maximum Bearing Capacity: 10 kg

Feature:

Used for non-destructive testing of bubbles, pores and foreign bodies in automobile steering wheel and various small castings; equipped with automatic testing software to automatically determine good and bad products; the workpiece on the pallet detection platform can be rotated 360° and detected from multiple angles.
