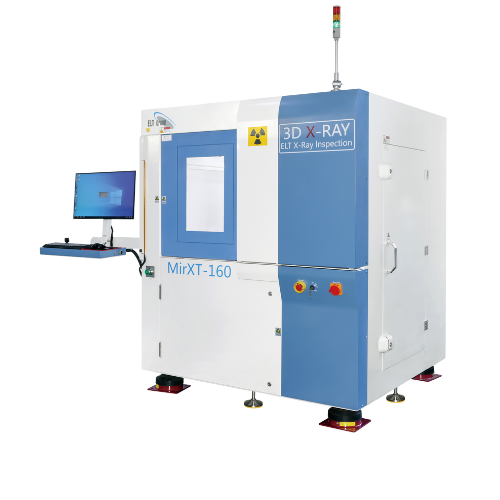

System Magnification and Resolution
Geometry Magnification Time: 2100x
Total Magnification: >23000X
Details Resolution: Up to 0.35 microns
Submicron X-ray Tube: Open micron tube, transmission tube head, 170 °radiation Angle, collimation function
Maximum Tube Voltage: 160KV
Maximum Power: 20W
Target: Non-toxic carrier tungsten target and can be rotated for multiple uses
Vacuum System: Oil-free low vacuum pump + turbo molecular vacuum pump
Detector: 1536*1536 pixel
Control Platform: X-ray automatic navigation system, can achieve internal and external navigation
Overall Structure: High precision anti-vibration, 5-axis synchronous drive
Maximum Detection Range: 410mm×410mm
Maximum Work piece Size/Weight: 510mm×510mm/5kg
Probe WNW Triangle View Rotated: Adjustable viewing Angle 70°，n×360°
Control: Joystick control or mouse (manual mode) CNC programming Control(automatic mode)
Control AIDS: X-ray image navigation map, click to move function, click to enlarge function, Automatically maintain the center of vision function, laser positioning and aiming
Anti-Collision System: Prevent the test sample from colliding with the ray tube
Image processing software
ELT x/act base: Comprehensive X-ray image analysis software includes image contrast enhancement and filtering. measurement, CNC programming
BGA mode: BGA solder joint automatic detection function
VC mode: Automatic calculation of void area ratio, including multi-chip mounting void detection function
System scale (WxHD): 1650mm*1680mm*1955mm (Excluding console and detachable rear extension)
Console Height Adjustable: 320mm
Maximum Weight: About 3050kg
Radiation safety protection: Safety shielding room with lead steel protective structure and lead glass Windows, in accordance with German and American safety design standards for X-ray equipment
Radiation leakage dose rate: <1.0m Sv/h, in line with international standard
Applications:
BGA (Ball Grid Array)
CSP (Chip Scale Package)
Flip Chip
LED semiconductor 3D detection
SMT welding analysis
3D CT scanning system (plane CT + Cone-beam CT)
