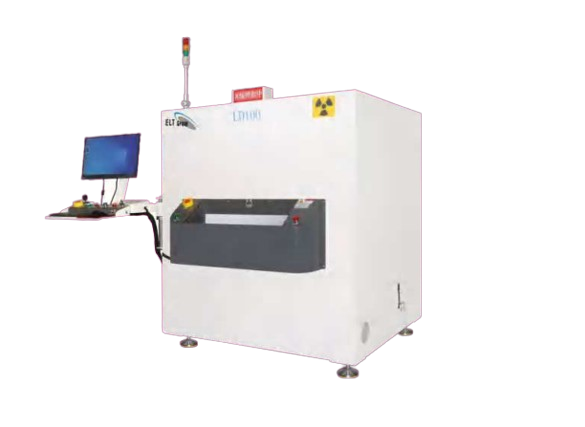

Electronicstalk LD100 ການກວດກາດ້ວຍລັງສີເອັກສ໌ແບັດເຕີຣີແບບອອບໄລນ໌

Light Tube:

Tube Type: Sealed tube

Tube Voltage: 90 kV

Tube Current: 200 μA

Focus Size: 5 μm

Cooling Method: Air cooling

Flat Panel Detector:

Pixel Size: 85 μm

Pixel Matrix: 1536 × 1536

Effective Imaging Area: 130 × 130 mm

Fps / Rate: 20

Number of A/D Bits: 16 bit

Feature:

The device is used for semi-automatic online detection of the pole ear shape of power battery, and detects the pole ear shape by directly viewing the projected image of the battery end.

- Performance: off-line manual/semi-automatic detection;

- Automatic entry and exit of testing table, convenient loading and unloading;

- Built-in horizontal 360° rotating platform, can detect the four corners of the battery;

- Can detect the maximum battery size 500 × 200 × 200 mm;

- Measurement method: automatic measurement, automatic capture of measurement area, automatic navigation, automatic discrimination, manual setting of measurement area after automatic capture.
