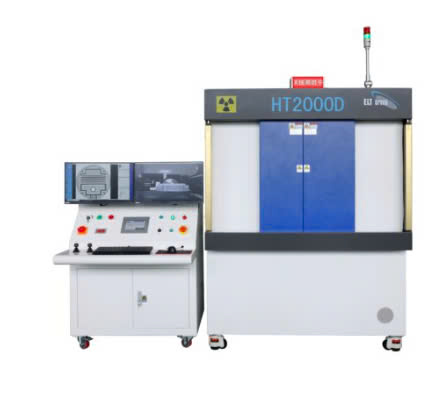

Electronicstalk HT2000D ການກວດສອບ X-ray Casting (157mm*157mm, 650x400x440mm)

X–Ray Tube

Tube Style: Sealed Tube

Tube Voltage: 160KV

Tube Current: 2.5mA

Optical Tube: 400W

Details Resolution: 0.4mm

Cooling Mode: Air Cooling

Flat Panel Detector

Effective Area: 157mm*157mm

Pixel Size: 154um

A/D Change: 16Bit

Sample Table

Axis Z: 650mm

Axis X: 400mm

Axis Y: 440mm

Axis U: ±35°tilt

Axis R: Horizontal 360° Rotation

Maximum Bearing Capacity: 30KG

Software and Image Processing Capabilities

Measuring function: The bubble crack of the test sample was determined by software.

Software processing Power: Image Inversion, Sharpening, Histogram, Binarization for better analysis of X-RAY images

Image Enhancement: Automatic Image Enhancement, Image Reverse color, Image Edge Smoothing, Texture

Software Protection Capability When the Machine is Unmanned, the X-Ray is automatically disconnected after 20 minutes, thus extending the life of the X-ray tube

Radiation safety

The machine surface: <1usv/h

Safety door automatic interlock protection function: When the X-ray is turned on, the safety door automatically locks for protection

Computer

Brand: Advantech

System: WIN10

CPU: I5

X-Ray subject

Size: Host machine：L1465mm*W1165mm*H1923mm; Operating table：L950mm*W870mm*1359mm

Weight: About 2000kg

Power

Power supply mode: AC110-230VAC,50/60Hz

Applications:

Comprehensive inspection and testing of cast components

Ensures structural integrity and quality performance

Detection of internal defects in casting materials

Verification of dimensional accuracy and consistency
