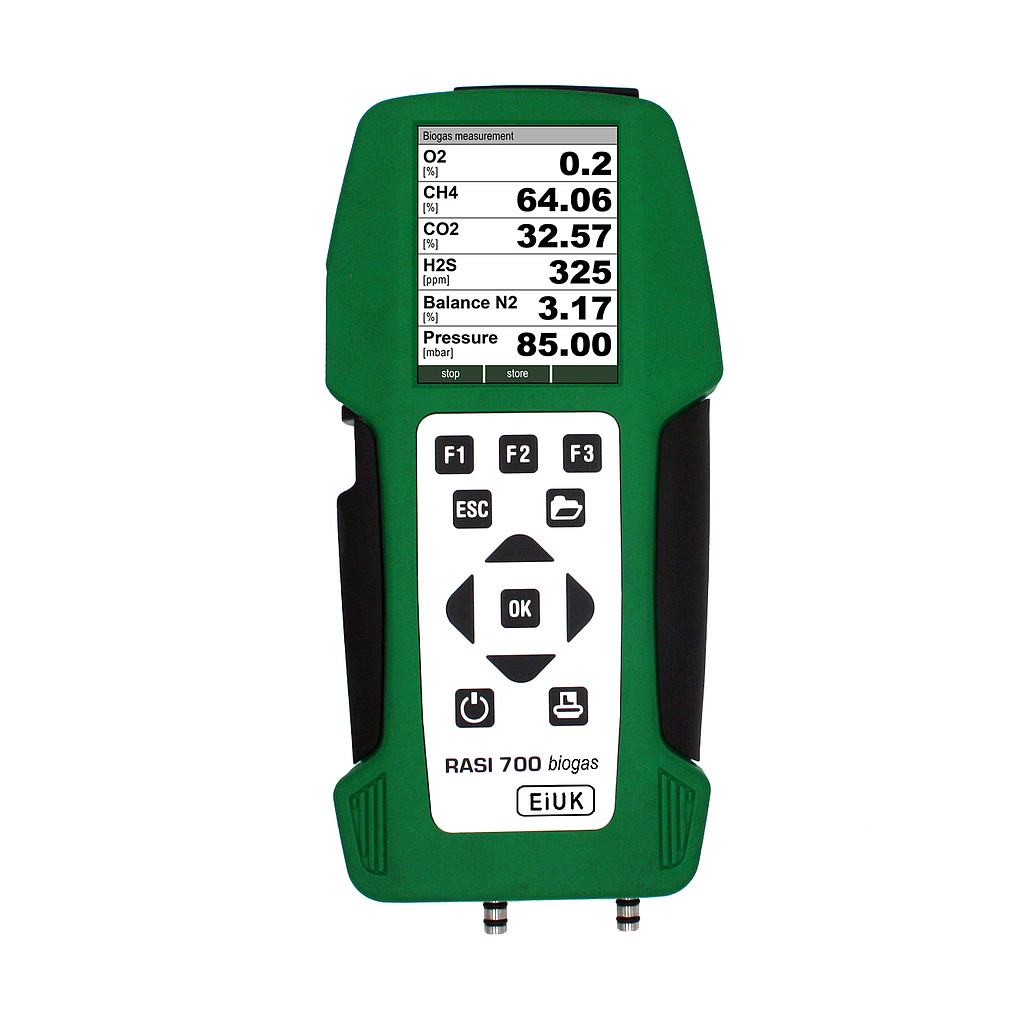

EiUK RASI700BIO ເຄື່ອງວິເຄາະອາຍແກັສແບບພົກພາສໍາລັບຄໍາຮ້ອງສະຫມັກ BIOGAS (O2 ( 0-25 %), CH4 (0-100%), CO2 (0-100%))
O2 measurement (Standard):
Range: 0 to 25 %
Accuracy: ± 0.2 % Vol
Resolution: ± 0.01 % Vol
CO measurement with H2 Compensation ( Optional):
Range: 0 to 20000 ppm
Accuracy: ± 10 ppm or ± 5 % of reading up to 4000 ppm; ± 10% of reading from 1000 to 20000 ppm
Resolution: 1 ppm
CO2 % NDIR (Standard):
Range: 0 to 100 %
Accuracy: ± 0.3 % Vol or 3 % of reading
Resolution: 0.0001
CH4% NDIR (standard):
Range: 0 to 100 %
Accuracy: ± 0.2% Vol or ± 3% of the readings
Resolution: 0.01% Vol
H2S (Optional):
Range: 0 to 5000 ppm
Accuracy: ± 5 ppm or 5 % reading
Resolution: 1 ppm
Range: 0-to 10000 ppm ( max 50000 ppm short exposure)
Accuracy: ± 50 ppm
Resolution: 1 ppm
H2 (Optional):
Range: 0-2000 ppm
Accuracy: ± 5 ppm or 5 % reading
Resolution: 1 ppm
Flow measurement ( using pitot tube) (Optional):
Range: 3 to 100 m/s
Accuracy: ± 1 m/s or 3 % reading
Resolution: ± 0.1 m/s
Pressure measurement ( gauge, vacuum and differential) Standard:
Range: – 300 to 300 mbar
Accuracy: ± 0.02 mbar
Resolution: ± 0.01 mbar
Temperature & differential temperature ( Type K thermocouple) Standard:
Range: -5 to 1200 °C
Accuracy: -2 °C
Resolution: 0.1 ° C
Barometric Pressure (Standard):
Range: 850-1150 mbar
Resolution: 0.1 mbar
Accuracy: 1 to 9.99
Resolution: 0.01
Flow Gas measurement (option) :
Range: 3 to 100 m/sec
Accuracy: ± 1 m/sec or ± 3% of reading
Resolution: 0.1 m/sec
Digital & Software :
Communications: mini USB, IRDA and Bluetooth as standard
Data logging: 16000 Data log on internal memory & SD card
Mobile APP ( Free): MRU4U working on IOS & Android
Software (Optional): WIN4U emissions software
General:
Pump Rate ( internal): 60 l/hr
Included accessories: Water trap with filter, sampling hose, LI-ION rechargeable batteries, USB charger, charger lead and wall charger, soft caarrying case with space for analyser and accessories
Display: 3.5″ TFT colour display, 6 lines , graphic
Weight: 750 g
Dimension: 110x225x52
IP protection: IP 21
Power/main: LI-ION AC 100-250 VAC, USB charger/lead supplied
Operating/Storage temperature: 5 to 45 °C/ -20 to 50 °C
Notes: Specification might change with-out prior notice due to contonuos product improvement
