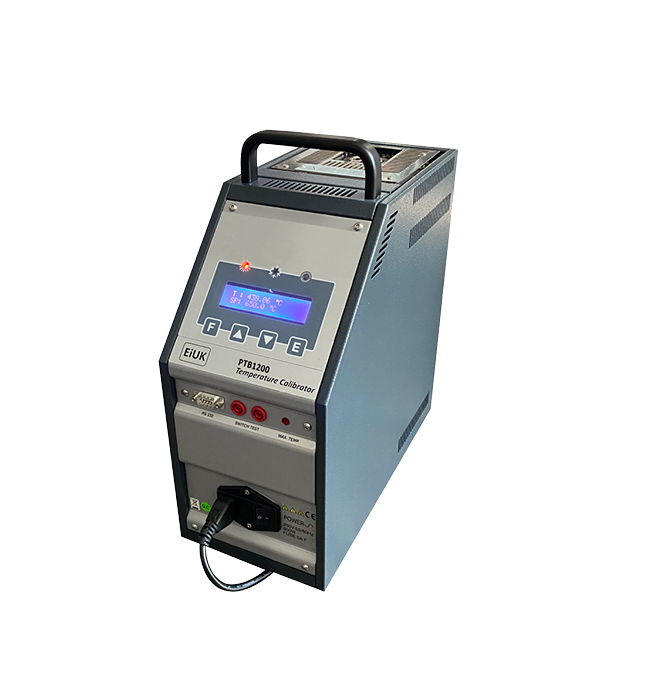

EiUK PTB 1200 ເຕົາອົບ Calibration Thermocouple Portable ອຸນຫະພູມສູງ (100 ~ 1200° C)
Temperature Range:
Ambient Temperature : 100°C to 1200 °C
Stability ( measured over 30 mins): ± 0.15 °C
Accuracy:
with Internal Reference Sensor: ± 3 °C
Uniformity:
Axial ( from 0 to 40 mm from the bottom): ±1.3°C @ 1000 ºC
±0.4°C @ 200 ºC
Display Settings:
Set Point Range: Ambient °C to 1200 °C
Resolution: 0.01º C/F full range
Units: user-selectable C, F
Calibration Volume:
Effective Immersion depth: 190 mm
Insert Diameter: 34 mm
Standard Insert: Inconell , 34 x 160 mm, with 4 holes all 125 mm depth plus 65 mm ceramic Insulator
Ø 4.8 x 125 mm
Ø 6.4 x 125 mm
Ø 9.5 x 125 mm
Ø 12.8 x 125mm
Heating Rate: 15 ºC/min
Cooling Rate: 7 ºC/min
General:
Computer interface: RS 232 as standard ( UBS adapter supplied as option) and EIUK software included
Switch Test: Yes With automatic log of switch open and switch closed
Ramp: Yes fully programmable
Weight: 10.5 Kg
Dimensions: 165 x 355 x 390 mm
Power Requirement: 115 o 230 V – 50/60 Hz
Power: 700 VA @ 230 V
Scope of Supply:
Each PTB1200 is supplied with: Power Cable, USB cable, switch test lead, standard insert, insert removal tool, traceable calibration certificate and instruction manual:
