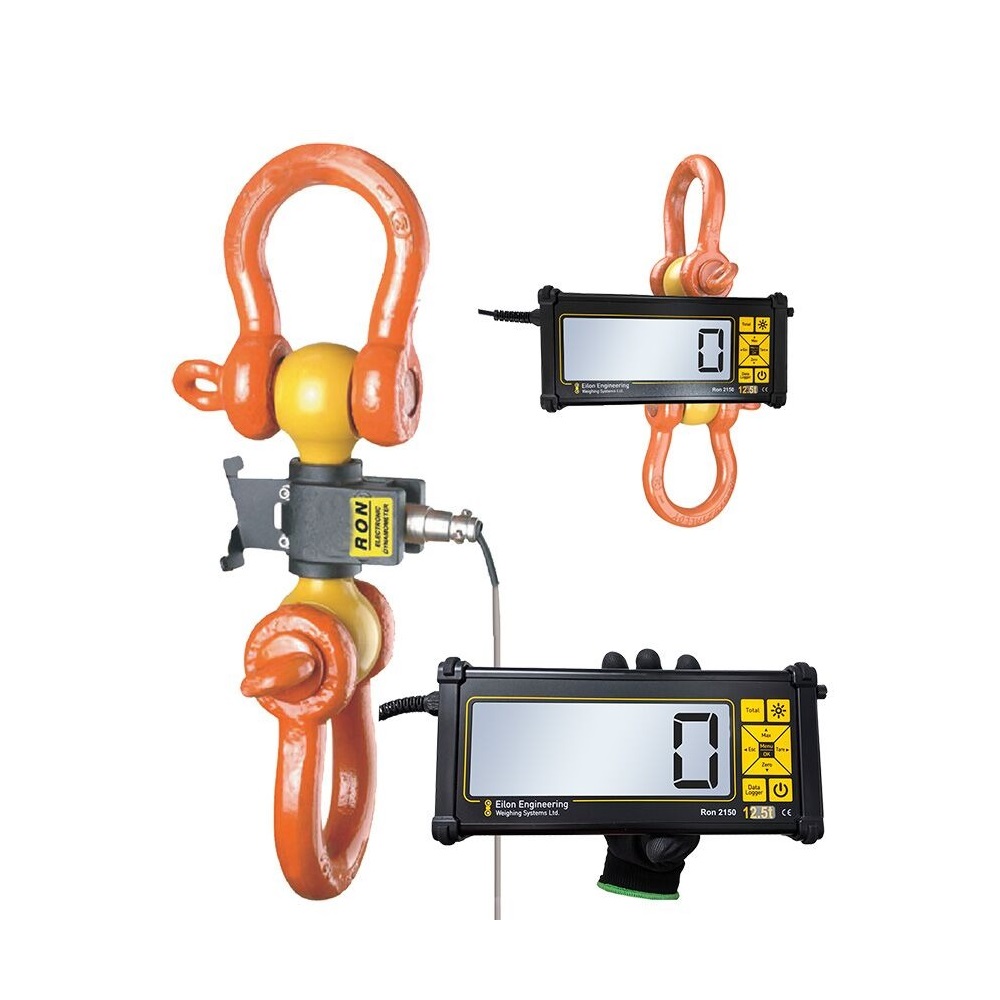

Full Range: 100 tons
Resolution: 20kgs
Load cell weight:28kgs
Cable length: 15m
H1 (max.): 275mm
H2 (max.): 121mm
B (max.): 182mm
Ø D1 (max.): 165mm
Ø D2 (min.): 81mm
Matching anchor shackle size: Widebody125t
Safety factor: 5:1
Accuracy: 0.1% of full range.
Load Cell Material: high-strength, aerospace quality, alloy steel, polyurethane coated.
Proof Load: Each system proof-loaded to 200% of capacity (certified) up to a test force of 400t.
Display: 5/6 digits, 2" (50mm) liquid crystal display. Overload warnings (100%/130%), Max (peak hold), low battery indication, Gross/Net. Refresh rate 1Hz.
Sampling Rate: 200 per second.
Units: User selectable units (metric tons, short tons, kgs., Ibs., Newtons, Deca-Newtons, Kilo-Newtons).
Housing: Aluminum indicator, ABS load cell.
Temperature Range:
Load cell: -15°F to +175°F (-25°C to +80°C).
Indicator: -4°F to +158°F (-20°C to +70°C).
Environmental: IP65 (Optional IP67 Load Cell).
