Measuring principle: coaxial impedance dielectric reflectometry
Cable: 15m
Length measuring pins: 57 mm
Communication protocol: SDI-12 Standard v. 1.2
Cable: 3-wire: power, ground, data
Baud rate: 1200
Addressing: Serial; allows multiple sensors to be connected to any SDI-12 data logger via a single cable
Power supply: 9-20 VDC
Power consumption: <1 mA idle / 10 mA active
Output: 8-digit alphanumeric character LCD display
Operating temp.: 0°C to +65°C (32°F to 150°F)
Storage temp.: -20°C to 70°C (-4°F to 160°F)
Power: Battery-operated (9V alkaline)
Dimensions: 12.1 cm x 7 cm x 2.5 cm (4.75” x 2.75” x 1”)
Weight: 181 g (0.4 lb)
Description

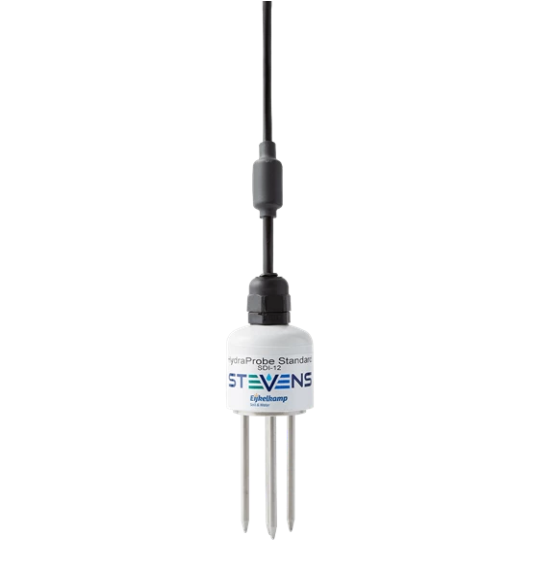

Looking for a rugged soil moisture sensor for long term monitoring? The HydraProbe SDI-12 Standard soil moisture sensor is suitable for the measurement of soil moisture in all soils. It can measure moisture in the range from completely dry to fully saturated, with an accuracy of accuracy +/- 0.01 WFV.
The HydraProbe is the most scientifically researched soil sensor available and is depended on by the USDA, NOAA, farmers, leading irrigation companies, and universities for over 25 years. It has been engineered to handle the terrain you want to measure and provides data you can trust year after year.
The temperature range is -10°C to 60°C, with a measurement accuracy of 0.3°C. The information can be read out with a data logger.
Variations
If you want to measure soil moisture and temperature only, the HydraProbe Standard will suffice. If you want to measure salinity as well, choose the HydraProbe Pro.
The following variations in cable length are available:
14.28.01 HydraProbe SDI-12 Standard, 7.5 metre cable
14.28.02 HydraProbe SDI-12 Standard, 15 metre cable
14.28.03 HydraProbe SDI-12 Standard, 30 metre cable
