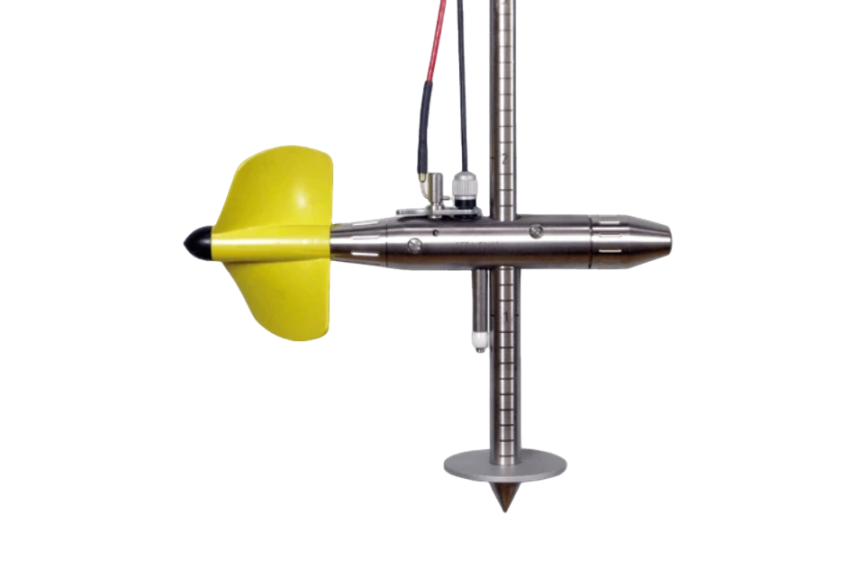

Eijkelkamp 13.12 ເຄື່ອງວັດແທກປະຈຸບັນທີ່ມີໃບພັດສັງເຄາະ (0.025 - 10 m/s)

Applications

Irrigation research

Water quantity research

Monitoring water quantity

Discharge measurements

Note: the oil in the body needs to be replaced once every few years.

Specifications

Measured parameters: Meter per second

Measuring range: 0.025 - 10 m/s

Production material: Stainless steel

Standard propeller diameter: 125 mm

Rod length: 2 m

Registration type: Manual or logging

Package size: 114 x 47 x 56 cm

Weight: 7.5 kg

Description

The measurements are executed with the propeller mounted on the rod(s) or connected to a cable. The current velocity meter has a measuring range of 0.025 to 10 m/sec.

The meter with the extension rods is usually applied for measurements in shallow creeks or rivers with low current velocities. The digital counter, fitted with a carrier belt, registers up to 10 pulses per seconds. In large water ways with higher water levels and current velocities the current velocity meter can be connected to a cable with single drum winch (optional), which can be mounted either to the railing of a bridge or a boat.

The complete set contains:

Streamlined current velocity meter with a synthetic propeller

Digital counter

Extension rods with graduation

Cable

Case

Accessories

Manual
