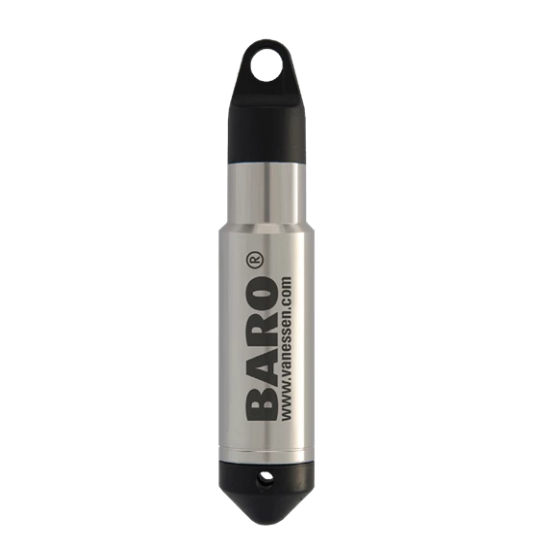

Eijkelkamp 11.11.56.01 Baro-Diver (72,000 measurments)

Applications:

Geohydrological research

Water quantity research

Monitoring water quantity

Specifications:

Battery life: 8-10 years

Data storage capacity: 72,000 with 72,000 back-up

Operating temperature: -10 - 50℃

Product material: Stainless steel housing, ceramic pressure sensor

Measured parameters: temperature and pressure

Weight: 104 g

Description

The Baro-Diver measures atmospheric pressure and is used to compensate for the variations in atmospheric pressure measured by other Diver types. The Baro-Diver can also be used for measuring shallow water levels up to 1 metre.

For each measurement, the Baro-Diver simultaneously registers barometric pressure, air temperature, date, and time. It samples pressure and temperature at fixed length intervals, storing the values in the internal working memory capable of storing 72,000 measurements per parameter.

Special software is available for the Divers. Download via WeTransfer.

Features

Compact size: diameter of 22 mm and length of 110 mm

Memory: 72,000 records of time stamp, pressure and temperature with back-up

Continuous and fixed length memory

Note: the Baro-Diver must be installed in such a way that it measures atmospheric pressure only under all conditions. A location that is not subjected to rapid temperature variations is preferred.
