Applications
Environmental soil research
Specifications
Drilling diameter: 7 cm
Maximum sample depth: 10 m
Weight: 350 kg
Description
Drilling can be executed fast and efficient applying the so-called lost cone drilling method. Royal Eijkelkamp developed a manually controlled set using an electrical percussion hammer to hammer the lost-cone and the accompanying casing into the soil.
The lost-cone drilling standard set is developed for drilling according to the lost-cone method, to a depth of up to 10 metres. The specially designed lost-cone is hammered into the soil using an electrical percussion hammer, which is placed on the casing. The lost-cone produces a very straight bore hole that is slightly wider in diameter than the casing, in order to reduce the friction. This procedure makes it easier to reach greater depth and the friction on extracting the casing is limited.
The lost-cone drilling method is successfully applied for environmental research when installing monitoring wells with a small diameter. After drilling the lost-cone is left in the soil. This does not cause any environmental problems as the material used is present in the soil by nature. The method is also ideal for installing wells in stony soils. It is also the safest way to lower explosives.
Please note that this way of drilling is limited to soils with some porosity and the shear stress value of the soil can't be too high.

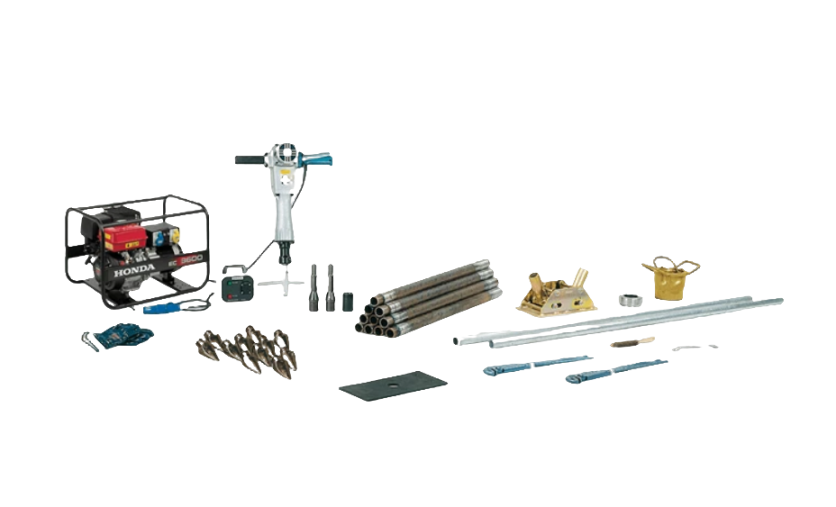

Set contains
Electrical percussion hammer
Aggregate with insulation guard
Striking pens
Drive-cone holder for percussion casing
Steel casing
Pulling equipment
Lost-cones
Various accessories
Remarks
Limited to soils with some porosity
Shear stress value of soil cannot be too high
For larger depths we offer Sonic drilling equipment.
