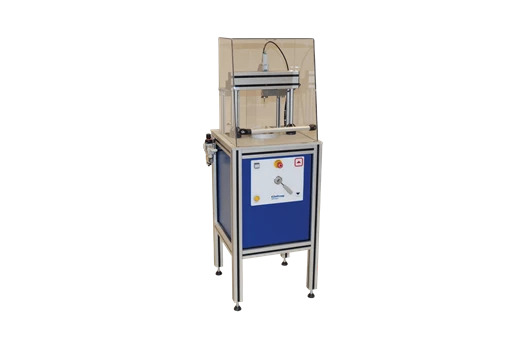

Eijkelkamp 08.67 ຊຸດເຄື່ອງທົດສອບການບີບອັດ (0-600 kPa, 0-30 mm)

Applications

Soil science, mechanics and erosion

Pre-compression for shear tests

Environmental research

Basic material research

Specifications

Stress vertical: 0-600 kPa

Response speed: 10 sec. @1% end value (adaptable by PID controller parameters)

Soil matric potential: -1000...+1000 hPa

Compression: 0-30 mm

Soil sample diameter: 100 mm

Pressure-in max.: 0.7 Mpa / 7bar

Mains supply: 100-250 VAC

Temperature and humidity: 15-35 ºC / 20-80% RH (non condensing)

Dimensions: 45 x 45 x 125 cm

Description

This apparatus applies pressure from the top for a fixed amount of time and measures how the soil responds. It operates fully automatic, and under computer control, using multifunctional software for executing set measurement protocols and both numerical and graphical visualised data presentation. All measured parameters are logged.

The samples are taken in a soil sample ring Ø 103 x 100 mm, height 30 mm, contents 235 cc.
