Eijkelkamp 08.66 ອຸປະກອນທົດສອບການຂັດຜິວ (P-40, 0 – 5000 g)

Applications

Erosion

Geotechnical engineering

Geo-Hydrologic research

Basic material research

Specifications

Soil sample rings: diameter 103x100 mm, height 30 mm

Shear container diameter: 68 mm

Roughness abrasive: P-40 (special proven quality)

Shear speed: manual

Shear force: Range digital scale: 0 – 5000 g

Resolution: 5 g

Dimensions: 50.5 x 24 x 21cm

Weight total set: approximately 10 kg

Description

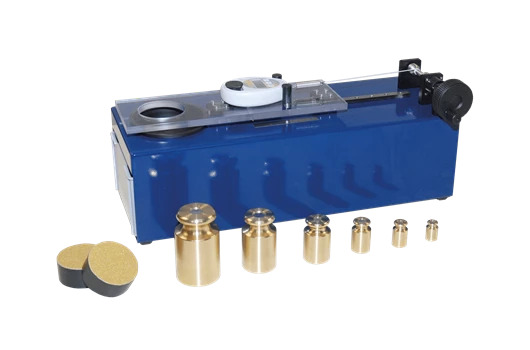

The determination of very thin soil layers, such as soil crusts, requires very sensitive and very accurate equipment. In addition, the equipment should allow very small vertical stress application during measurement. Our surface shear test apparatus meets these requirements. Included in the set are:

Erosion test apparatus

Weights 50-2000 gr

Various accessories

The apparatus was developed in cooperation with Christian Albrechts University Kiel in Germany, a leading institution in soil compaction research. Read the interview with Prof. Horn of Kiel University for more information.

Shear strength measurement

Altered soil functions, in particular reduced hydraulic conductivities and impeded aeration, influence the top soil layers. This has an important effect on vulnerability to erosion, in particular.

Soil stability is a decisive factor for erosion risk reduction. Soil stability is determined by shear resistance or the angle of internal friction, depending on or varying through soil-water pressure and humus content. Soil shear resistance will increase with increasing organic carbon content. Air-dry soil state samples will result in the smallest resistance to shearing in comparison with the range of water content applied. The effect of bulk density on soil shear strength depends on the water content and is distinct for a higher range of vertical loads.

User groups

Laboratories

Universities

Research institutes

Educational institutes

Specifications - weight

Weight container: for about 40 g - 1.08 hPa

Weight 1: 50 g - 1.35 hPa

Weight 2: 100 g - 2.70 hPa

Weight 3: 200 g - 5.40 hPa

Weight 4: 500 g - 13.51 hPa

Weight 5: 1000 g - 27.01 hPa

Weight 6: 2000 g - 54.02 hPa
