Eijkelkamp 05.02 ຊຸດ auger ຮາກ bi-partite (2 m)

Applications

Research to determine the possibilities to develop a root system and to determine the depth and the density of the root system

The root auger can be used in virtually all types of soil

Compound manure sampling. By applying extension rods the auger can be used to a depth of approximately 2 metres

Specifications

Connection: Screw thread

Maximum root thickness: 20 mm

Maximum sample depth:2 m

Product material: Iron, other material

Sample diameter: 80 mm

Sample length: 150 mm

Sample specification: Undisturbed

Sample volume: 750 ml

Sampler position: Vertical

Package size: 117 x 27 x 23 cm

Weight: 27.5 kg

Description

By applying the two-piece root auger, nearly undisturbed and uniform soil samples can be taken in layers of maximum 15 centimetres. The bi-partite root auger consists of a bottom part fitted with an exchangeable drilling-crown and a short unscrewable top part (handle) with a beating head.

In lighter soil the auger can be pushed and turned into the soil. In heavier soils an impact absorbing hammer can be used.

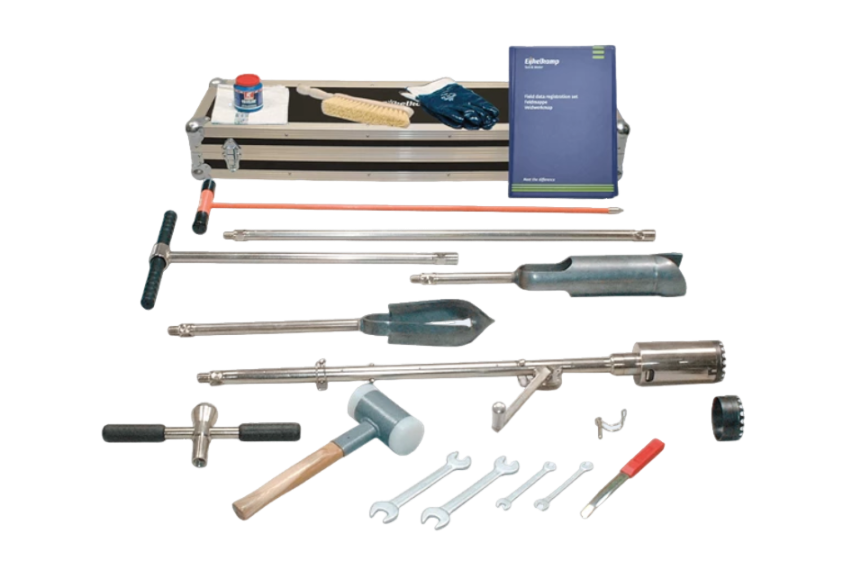

In the standard set an Edelman- and a Riverside auger have been included for reaming out the bore hole and levelling the bottom (making it even). A conical threaded connection is used.

The root auger is fitted with a sample extruder unit which forces the soil sample from the cylinder of the auger. The extruder unit is operated by means of a crank handle.

The complete root auger set, including all accessories, is packaged in an aluminium transport case.
