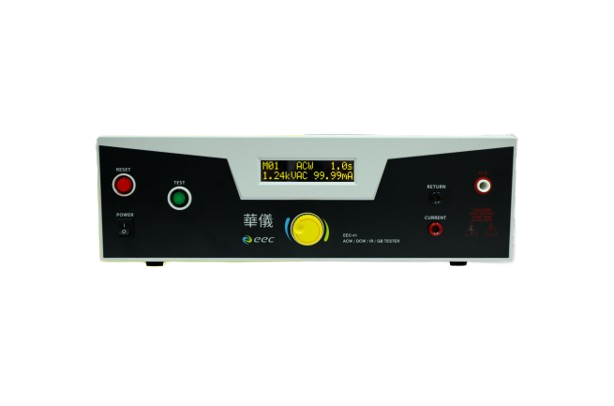

EEC EEC-41 ຜູ້ທົດສອບຄວາມປອດໄພ (3kV/100.0mAAC, 4kV/5mADC, 1kV/1000MΩ)
INPUT
Voltage (AC): 100–120Vac / 200–240Vac ±10%
Fuse: 15A / 250Vac
Frequency: 50/60Hz ±5%
AC WITHSTAND VOLTAGE
Output Rating: 3kV / 100mA
Voltage
Range: 0–3.00kV
Resolution: 0.01kV
Accuracy: ± (1.5% of setting 5V)
Current
Hi Limit Range: 0.10–99.99mA / 100.0mA
Lo Limit Range: 0.00–99.99mA / 100.0mA
Resolution: 0.01mA / 0.1mA
Accuracy: ± (2% of setting 6 counts) for 0–99.99mA
Accuracy: ± (2% of setting 2 counts) for 100.0mA
-
Output Frequency
Range: 50Hz / 60Hz
Ramp Up Time
Range: 0.2–60.0s
Resolution: 0.1s
Accuracy: ± (0.1% of setting 0.05 sec)
Dwell Time
Range: 0, 0.2–60.0 (0 = continuous)
Resolution: 0.1s
Accuracy: ± (0.1% of setting 0.05 sec)
DC WITHSTAND VOLTAGE
Output Rating: 4kV / 5mA
Voltage
Range: 0–4.00kV
Resolution: 0.01kV
Accuracy: ± (1.5% of setting 5V)
Current
Hi Limit Range: 0.02–5.00mA
Lo Limit Range: 0.00–5.00mA
Resolution: 0.01mA
Accuracy: ± (2% of setting 2 counts)
Ramp Up Time
Range: 0.2–60.0s
Resolution: 0.1s
Accuracy: ± (0.1% of setting 0.05 sec)
Dwell Time
Range: 0, 0.2–60.0 (0 = continuous)
Resolution: 0.1s
Accuracy: ± (0.1% of setting 0.05 sec)
Discharge Time: < 50ms, < 100ms for capacitor load
Maximum Capacitive Load
0.17µF < 1kV
0.09µF < 2kV
0.07µF < 3kV
0.05µF < 4kV
INSULATION RESISTANCE
Output Rating: 1kV / 1000MΩ
Voltage
Range: 0.10–1.00kV
Resolution: 0.01kV
Accuracy: ± (1.5% of setting 5V)
Hi/Lo Limit
Range: 1–1000MΩ
Resolution: 1MΩ
Accuracy: 0.10–0.49kV ± (7% of setting 2 counts)
Accuracy: ≥0.50kV ± (3% of setting 2 counts)
Ramp Up Time
Range: 0.1s or 2s
Resolution: 0.1s
Accuracy: ± (0.1% of setting 0.05 sec)
Dwell Time
Range: 0, 0.5–999.9s
Resolution: 0.1s
Accuracy: ± (0.1% of setting 0.05 sec)
GROUND BOND
Output Rating: 32A / 600mΩ / 8V
Current
Range: 1–32.0A
Resolution: 0.0A
Accuracy: ± (2% of setting 2 counts)
Offset
Range: 0–100mΩ
Resolution: 1mΩ
Accuracy: ± (2% of setting 2 counts)
Output Frequency
Range: 50Hz / 60Hz
Ramp Timer
Range:
0–250mΩ: 0.1s
251–300mΩ: 0.2s
301–450mΩ: 0.3s
>450mΩ: 0.4s
Dwell Time
Range: 0, 0.1–120.0s
Resolution: 0.1s
Accuracy: ± (0.1% of setting 0.05 sec)
