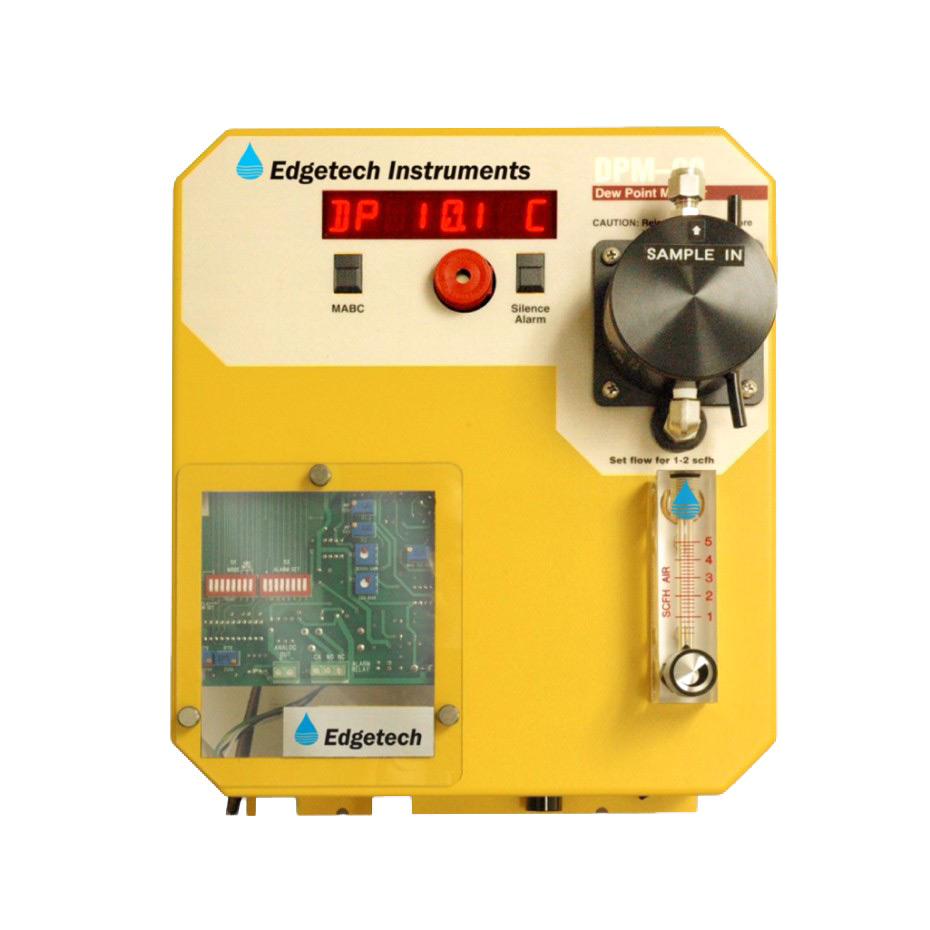

Edgetech Instruments DPM-99 Dewpoint Monitor (-10°F ~ 122°F; -45°F ~ 122°F)
Sensor Type: Primary method dew/frost point chilled mirror sensor
Dew/Frost Point Measurement Range:
S1 Sensor: -10°F to 122°F
S2 Sensor: -45°F to 122°F
Dew/Frost Point Accuracy: ±0.5°F over entire range
Power: 95-260 Vac, 50 to 400 Hz
Operating Temperature: 32°F to 122°F
Sample Connection: ¼ inch compression fitting
Sample Flow: 0.5 to 5.0 SCFH, through integral flow meter and valve
Sample Pressure: 0 to 150 psig, 55 psig nominal
Outputs:
Analog: 4 to 20 mA
Range: -58°F to 122°F
Compliance: 9.0 Vdc, 450 ohms
Display: 8-digit alphanumeric LED, 0.5” high, red
Alarm:
Audible: >98 dB at 2 feet, with temporary disable option
Visible: Flashing display message
Relay: 1 FORM C, non-latching, 10 A @ 240 Vac, 8 A @ 24 Vdc, 1/2 HP @ 240 Vac, programmable
Dimensions: 14”H x 10.7”W x 3.75”D
Weight: 7 lb.
Mounting: Wall mount standard
Material: Aluminum
Options:
Low Dew/Frost Point Kit: 2-stage sensor (recommended for desiccant dryers)
Filter Kit: In-line particulate/coalescing filter
