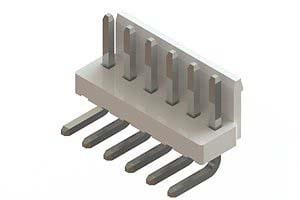

EDAC 14L-606-416-AA1 ພິນເຮດເດີ

Pitch: 3.96 mm (0.156 in)

Application: Wire-to-Board

Housing Color: Natural

Contact Gender: Pin (Male)

Current Rating: 7 A

Mounting Angle: Right Angle

Mounting Style: Through Hole

Number of Rows: 1 Row

Voltage Rating: 250 VAC/DC

Contact Plating: Tin

Contact Material: Brass

Housing Material: Nylon

Termination Style: Solder Pin

Mating Post Length: 8 mm (0.315 in)

Flammability Rating: UL 94 V-0

Number of Positions: 6 Position

Insulation Resistance: 1 GOhms

Termination Post Length: 3.8 mm (0.15 in)

Maximum Operating Temperature: + 105 C

Minimum Operating Temperature: - 25 C
