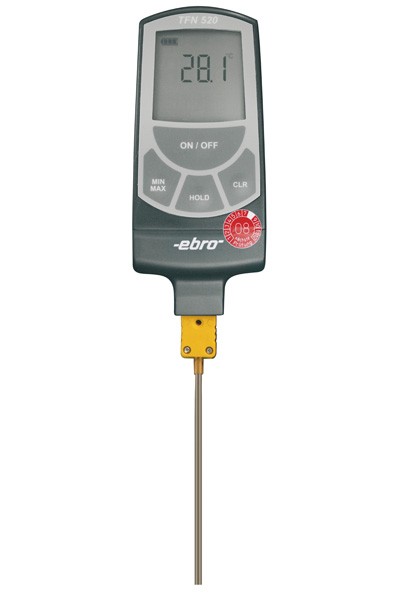

EBRO TFN 520-SMP (1340-5522) ເຄື່ອງວັດແທກອຸນຫະພູມສໍາລັບ Thermocouples (Type K, J, T, E)
Manufacturer: EBRO
Model: TFN 520-SMP
Part No.: 1340-5522
Origin: Germany
Warranty: 12 months
1-channel high accuracy thermocouple thermometer
TFN 520 Thermometer for Thermocouples (Type K,J,T,E)- without probe -
Product Description
• Robust and impact resistant
• MIN / MAX
• °C/°F selectable
• Battery indication
• Exchangeable battery
Heating technology
Climate, air-conditioning, gases Liquids, surface temperature Tooling for injection moulding Plastics
Laboratories
Technical data
Measuring range:Type K -200 °C to +1200 °C Type J -100 °C to +800 °C Type T -50 °C to +300 °C Type E -100 °C to +600 °C
Accuracy:Accuracy @ 25 °C Type K -100 °C to +249.9 °C ±0.3 °C Type J -50 °C to +190 °C ±0.3 °C Type T -50 °C to +220 °C ±0.3 °C Type E -50 °C to +150 °C ±0.3 °C rest of range 0.5% of reading
Resolution:Type K 0.1 ° C at -200 °C to +250 °C Type J 0.1 °C at -100 °C to +190 °C Type T 0.1 °C at -50 °C to +220 °C Type E 0.1° C at -100 °C to +150 °C 1 °C for the rest
Operating Temperature:-5 °C...+50 °C
Storage temperature:-25 °C...+60 °C
Sensor:extern; Thermoelement Typ K, J, T, E
Sample Rate:0,5s-15s
Probe:SMP
Measured variables:temperature
IP Rating:IP 40
Battery lifetime:approx. 5 years
Dimensions:115 x 54 x 22 mm
Weight:approx. 90g
Certificate:Factory calibration certificate
