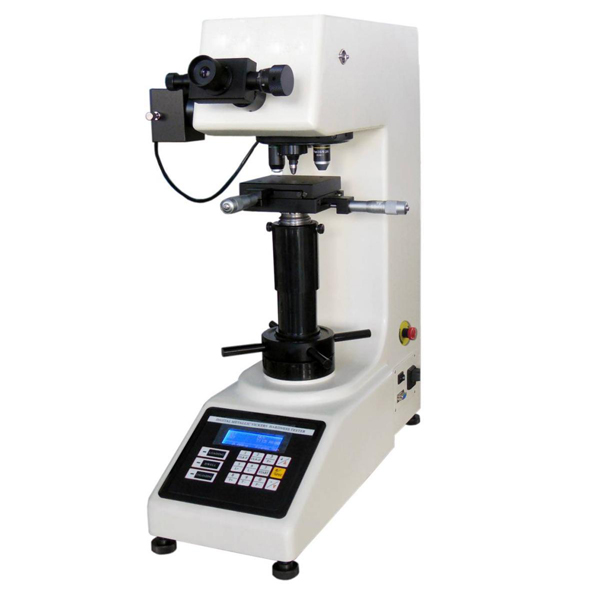

EBP V-5M Manual Turret Macro Vickers Hardness Tester (1HV ~ 2967HV)

Objective:20× (Observe), 40× (Measure)

Total Magnification:200X, 400X

Resolution:0.25μm

Eyepiece:10× Reading Microscope

Turret:Manual shift between objective and indenter

Test Force:

0.3kgf, 0.5kgf, 1kgf, 2kgf, 2.5kgf, 3kgf, 5kgf 2.94N, 4.90N, 9.80N, 19.6N, 24.5N, 29.4N, 49N

Test Range:1HV~2967HV

Loading Method:Automatic (Loading/Dwell/Unloading)

Dwell Time:0~60s

Light Source:Halogen Lamp

X-Y Test TableSize: 100×100mm; Travel: 25×25mm; Resolution: 0.01mm

Test Space:170*130mm (H*D)

Power Supply:AC220V, 50Hz

Execute Standard:ISO 6507, ASTM E92, JIS Z2244, GB/T 4340.2

Dimension:530×280×630mm, Packing Dimension: 620×450×740mm

Weight:Net Weight: 35kg, Gross Weight: 47kg

Packing List:

Instrument Main Body1 set10×

Reading Microscope1 pc

Diamond Vickers Indenter1 pc

Objective2 pcs

Cross Test Table1 pc

Power Cable1 pc

Horizontal Regulating Screw4 pcs

Level1 pc

Fuse 1A2 pcs

Halogen Lamp 12V, 15~20W1 pc

Inner Hexagon Spanner 2.5mm1 pc

Screw Driver1 pc

Hardness Block 700~800 HV11 pc

Hardness Block 700~800 HV101 pc

Anti-dust Cover1 pc

Usage Instruction Manual1 copy
