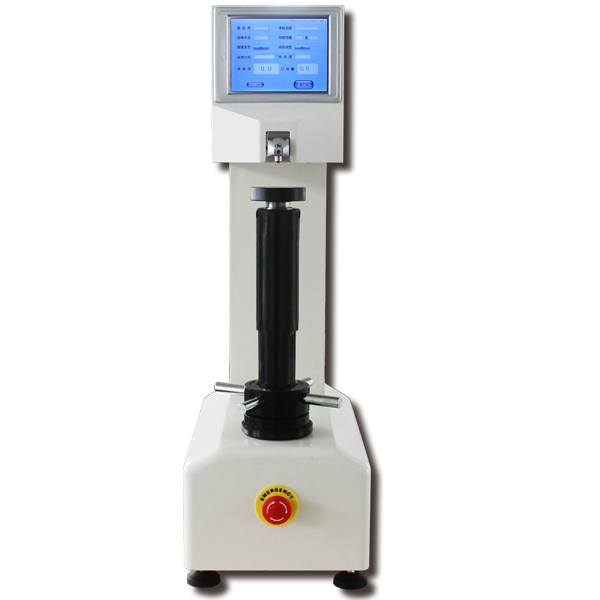

EBP R-45NT Nose Mounted Indenter Superficial Rockwell hardness Tester

Test force (error < 0.5%):15kgf (147.1N) 30kgf (294.2N) 45kgf (441.3N); Initial force: 3kgf (29.4N)

Superficial Rockwell scale:15N, 15T, 15W, 15X, 15Y, 30N, 30T, 30W, 30X, 30Y, 45N, 45T, 45W, 45X, 45Y

Conversion scales:HRA, HRB, HRC, HRD, HRF, HV, HK, HBW, HR15N, HR30N, HR45N, HR15T, HR30T, HR45T

Superficial Rockwell test range:HR15N: 70-94, HR30N: 42-86, HR45N: 20-77 HR15T: 67-93, HR30T: 29-82, HR45T: 10-72

Dwell time:0-99s

Display of Hardness Value:Touch LCD screen

Test accuracy:0.1HR

Executive standard:BSEN 6508, ISO 6508, ASTM E18, GB/T230

Data output:USB flash disk (Excel format)

Power supply:AC220±5%, 50-60Hz

Test space:Max. Height: 300mm; Throat depth: 250mm

Machine size:720*260*840mm

Net weight:80kg
