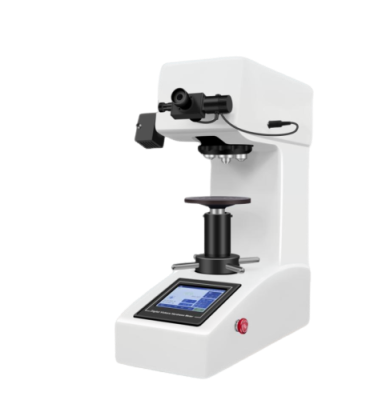

EBP HVT-30ADL ເຄື່ອງທົດສອບຄວາມແຮງ Vickers ດິຈິຕອນ ປະກອບດ້ວຍ Load Cell ແລະ Turret ອັດຕະໂນມັດ (0.3kgf (2.94N) ~30kgf (294.0N))
Turret: Automatic (motorized switch)
Force loading: Automatic loading - dwell - unloading
Testing Force: 0.3Kgf (2.94N), 0.5Kgf (4.90N), 1.0 Kgf (9.8N), 2.0Kgf(19.6N), 2.5Kgf(24.5N), 3.0Kgf(29.4N), 5.0Kgf(49.0N), 10.0Kgf(98.0N), 20Kgf(196.0N), 30Kgf(294.0N)
Hardness Scale: HV0.3, HV0.5, HV1, HV2, HV2.5, HV3, HV5, HV10, HV20, HV30
Conversion Scales: HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRH, HRK, HV, HK, HBW, HR15N, HR30N, HR45N, HR15T, HR30T, HR45T
Min measuring unit: 0.125µm
Hardness range: 5-4000HV
Eyepiece: 10X digital eyepiece with built-in encoder, automatic calculate data
Objective: 10X, 20X
Magnification:
100X (measurement), 200X (measurement); Measuring range:400um
Both lens can do observe and measurement work directly
XY work table(optional purchase)
Dim.:100x100 mm, Max. Travel Range: 25x25mm,
Moving Resolution Ratio: 0.01mm
Dwell time: 1-99S (1 second per step)
Data output: 5.6’’ touch screen display, built-in printer
Test space: 175mm x 125mm (Height x Depth)
Power supply: AC220V， 50Hz
Standard: ISO 6507, ASTM E92, JIS Z2244, GB/T 4340.2
Overall Dimension: 320*580*620mm
Net weight: 71kg
Standard Accessories：
Large round test table 1
Medium size test table 1
10X digital eyepiece 1
V-shape test table 1
Vickers hardness block 2
Accessory case 1
10X objective lens 1
Spare Fuses (2A) 2
20X objective lens 1
Regulating Screw 4
Dust cover 1
Manual book 1
