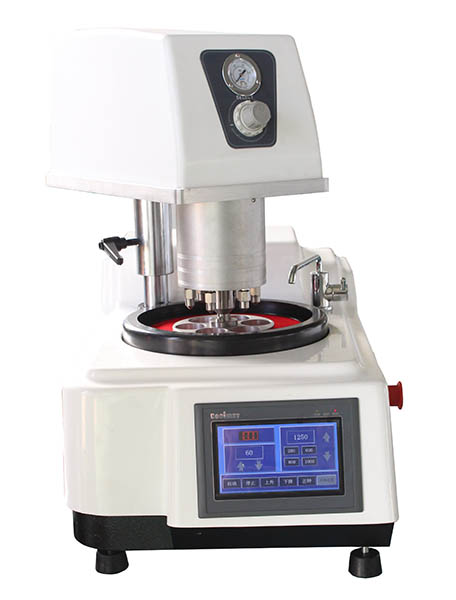

EBP GP-1AT Automatic Grinding & Polishing machine (5-150rpm)

Grinding and polishing disc diameter: diameter of 250mm (203mm, 300mm for optional)

Grinding and polishing disc speed of Ø203mm, Ø250mm: 50-1000r/min (stepless speed regulation)

Grinding and polishing disc speed of Ø300mm: 50-1000r/min (stepless speed type for customized) ; Standard speed of Ø300mm disc: 200 r/min, 600 r/min, 800r/min, 1000 r/min

Grinding and polishing head speed: 5-150r/min (stepless speed)

The number of samples prepared: 6 pieces

Loading range: 5-60 Newton (N), Pressure loading by manual

Sample process time: 0-9999 seconds (S)

Sample diameter: Ø30mm (Ø22mm and Ø45mm can be customized )

Input voltage: single phase AC220V 50Hz 1.1KW

Size: 632×750×700 (mm)

Net weight: 55KG

Weight: 71KG
