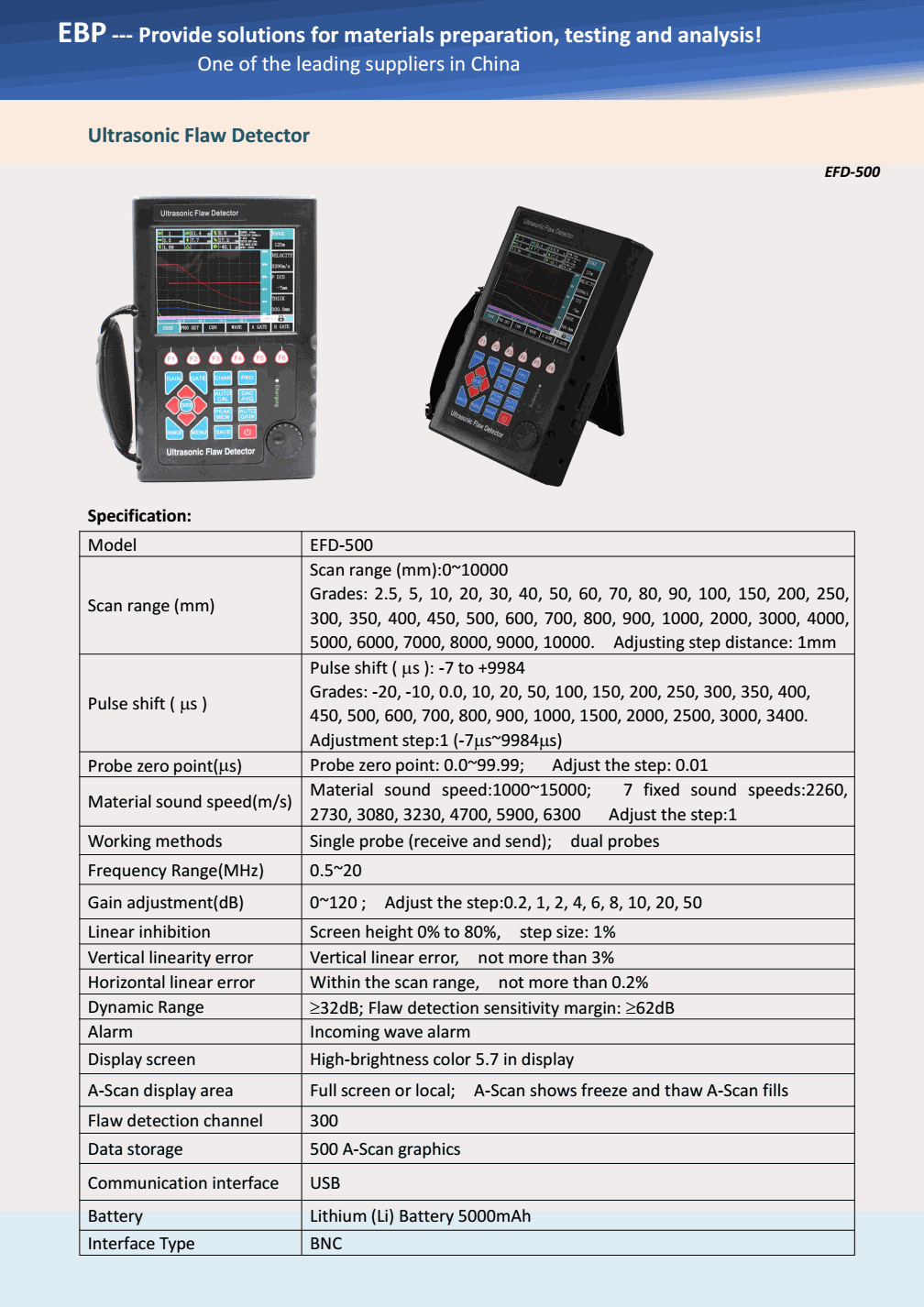

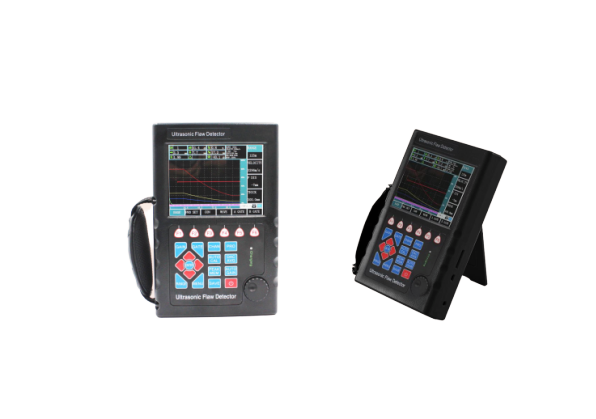

EBP EFD-500 ເຄື່ອງກວດຈັບຂໍ້ບົກພ່ອງ Ultrasonic (0~10000 mm)

Scan range (mm):

Scan range (mm): 0~10000

Grades: 2.5, 5, 10, 20, 30, 40, 50, 60, 70, 80, 90, 100, 150, 200, 250, 300, 350, 400, 450, 500, 600, 700, 800, 900, 1000, 2000, 3000, 4000, 5000, 6000, 7000, 8000, 9000, 10000. Adjusting step distance: 1mm

Pulse shift (µs):

Pulse shift (µs): -7 to +9984

Grades: -20, -10, 0.0, 10, 20, 50, 100, 150, 200, 250, 300, 350, 400, 450, 500, 600, 700, 800, 900, 1000, 1500, 2000, 2500, 3000, 3400.

Adjustment step: 1 (-7µs~9984µs)

Probe zero point(µs) Probe zero point: 0.0~99.99; Adjust the step: 0.01

Material sound speed(m/s): Material sound speed: 1000~15000; 7 fixed sound speeds: 2260, 2730, 3080, 3230, 4700, 5900, 6300 Adjust the step:1

Working methods: Single probe (receive and send); dual probes

Frequency Range(MHz): 0.5~20

Gain adjustment(dB): 0~120 ; Adjust the step:0.2, 1, 2, 4, 6, 8, 10, 20, 50

Linear inhibition: Screen height 0% to 80%, step size: 1%

Vertical linearity error: Vertical linear error, not more than 3%

Horizontal linear error: Within the scan range, not more than 0.2%

Dynamic Range: >=32dB; Flaw detection sensitivity margin: >=62dB

Alarm: Incoming wave alarm

Display screen: High-brightness color 5.7 in display

A-Scan display area: Full screen or local; A-Scan shows freeze and thaw A-Scan fills

Flaw detection channel: 300

Data storage: 500 A-Scan graphics

Communication interface: USB

Battery: Lithium (Li) Battery 5000mAh

Interface Type: BNC
