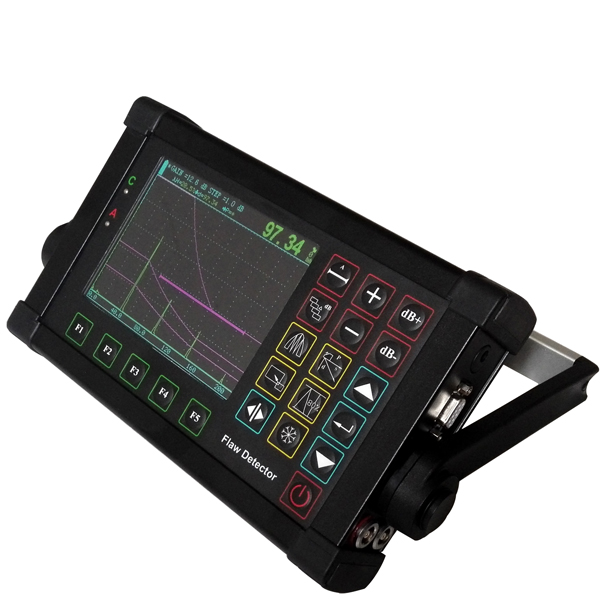

EBP EFD-200 Ultrasonic Flaw Detector

Measuring range (mm):0 -10000

Vertical linearity error:≤2.5%

Horizontal linearity error:≤0.1%

Sensitivity margin:≥62dB

Dynamic scope:≥34dB

Resolution:≥36dB

Frequency range (MHz):0.5-20

Gain（dB）:0 ～ 110

Velocity:1000 ～ 15000

Measurement mode:Single, dual, THRU

Reject:0-80%

Pulse shift (μs):-20 ～ +3400

Zero:(μs) 0.0-99.99

Port type:C9

Operating temperature:-20～50

H×W×D(mm):240×150×50

Weight (kg):1.6
