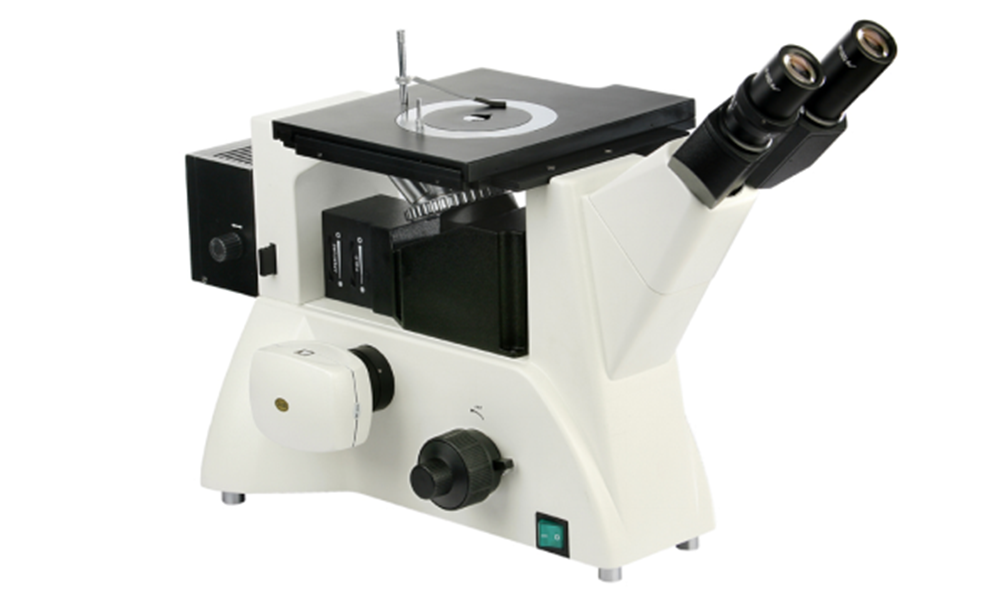

EBP E-600 Inverted Trinocular Metallurgical Microscope

Eyepiece:10X wide field plan eyepiece and field of view number is Φ22mm, the eyepiece interface is Ф30mm

Dark & bright field objective）:

PL L5X/0.12 working distance: 9.70 mm

PL L10X/0.25 working distance: 9.30 mm

PL L20X/0.40 working distance: 7.23 mm

PL L50X/0.70 working distance: 2.5 mm

PL L100X for optional purchase

Eyepiece tube:Hinged binocular tube, with an observation angle of 45°, and a pupil distance of 53-75mm

Focusing system:Coaxial coarse/fine focus, with tension adjustable and up stop minimum division of fine focusing is 2μm

Stage:

1. Mechanical stage overall size: 242mmX200mm and moving range : 30mmX30mm.

2. Rotundity and rotatable stage size: maximal measurement is Ф130mm and minimal clear aperture is less

Illumination:12V50W halogen and brightness enable control. Integrated field diaphragm, aperture diaphragm and puller type polarizer. Equipped with frosted glass and filters

Polarizing set:Analyser can be rotatable and both polarizer and analyser can be move light path

Filter:Blue, green, yellow

Operation Environment:

l Indoor

l Altitude: 2000m Max.

l Temperature: 5℃-40℃ (41℉-104℉)

l Humidity: 80% for 31℃ (88℉); 70% for 34℃ (93℉); 60% for 37℃ (99℉) ; 50% for 40℃ (104℉)

l Pollution: 2 (Refer to IEC664)
