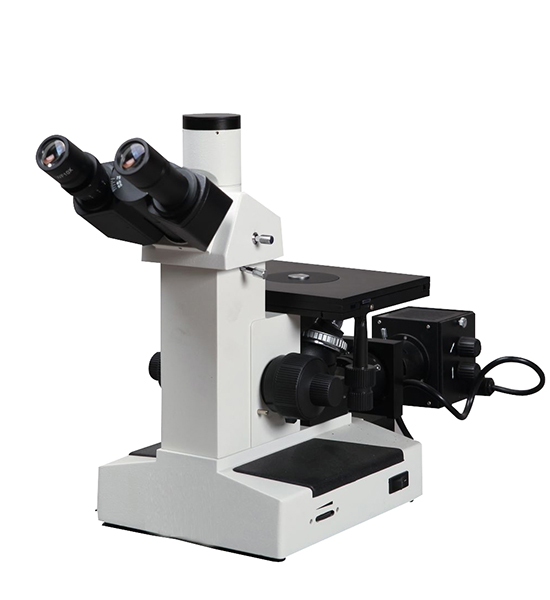

EBP E-200A Inverted Trinocular Metallurgical Microscope

Objective:10X/0.25, 20X/0.40, 50X/0.65, 100X/0.80 achromatic objective

Total magnification:100X, 200X, 500X, 1000X

Head:Hinge type 45 degree inclined

Nosepiece / Turret:Four hole (inward ball positioning) / Five hole for optional purchase

Focus:Fine and coarse coaxial, with lock function, fine precision: 2um

Stage:Size: 180*150mm, moving range: 15*15mm Ø12 metal stage

Illumination: Pupil distance: 53-75mm 6V30W halogen bulb, brightness is adjustment With aperture diaphragm and centering field diaphragm

Polarizing set:Analyser can be rotatable and both polarizer and analyser can be move light path

Filter:Blue, green, yellow

Operation Environment:

l Indoor l Altitude: 2000m Max.

l Temperature: 5℃-40℃ (41℉-104℉)

l Humidity: 80% for 31℃ (88℉); 70% for 34℃ (93℉); 60% for 37℃ (99℉) ; 50% for 40℃ (104℉)

l Pollution: 2 (Refer to IEC664)

Weight:Net weight: 7kg; Gross weight: 8.5kg
