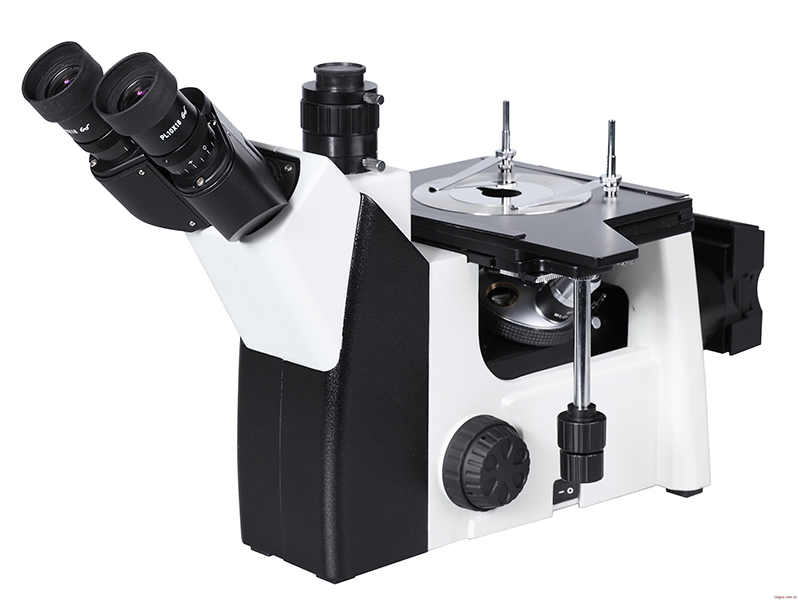

EBP E-200 Inverted Trinocular Metallurgical Microscope

Eyepiece:PL10X/18mm plan eyepiece

Objective:

1. Normal: 5X, 10X, 20X, 40X (195mm)

2. LWD professional plan objective: 5X, 10X, 20X, 50X, 100X) 3. Standard parts: 5X, 10X, 20X, 50X (100X for optional purchase)

Head: Gemel trinocular head, 45 degree inclined, with 8:2 prismatic Interpupillary distance: 55-75mm

Nosepiece:Build-in quadruple nosepiece (Build-in quintuple nosepiece)

Focus:Fine and coarse coaxial, moving range: 33mm, fine precision: 0.001mm

Stage:Size: 180*155mm, moving range: 75*40mm Ø12 metal stage (Ø25 metal stage for optional purchase)

Illumination:

1. Reflected Kohler illuninator with iris aperture diaphragm and centering field diaphragm.

2. 100-240VAC power supply with 3W LED bulb (6V30W halogen bulb for optional)

3. Brightness is adjustment

Polarizing set:Analyser can be rotatable and both polarizer and analyser can be move light path

Filter:Blue, green, yellow

Operation Environment:

l Indoor

l Altitude: 2000m Max.

l Temperature: 5℃-40℃ (41℉-104℉)

l Humidity: 80% for 31℃ (88℉); 70% for 34℃ (93℉); 60% for 37℃ (99℉); 50% for 40℃ (104℉)

l Pollution: 2 (Refer to IEC664)
