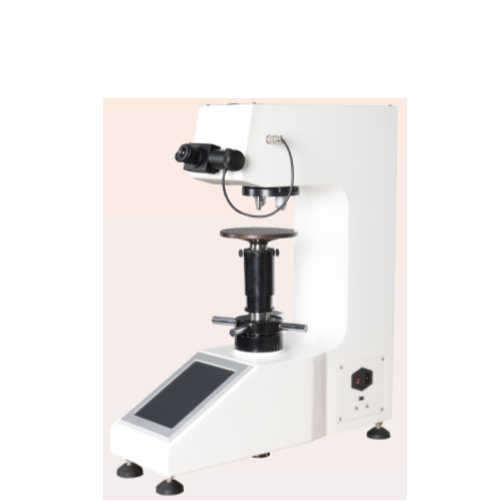

EBP DV-5ALT Advanced Touch Screen Digital Vickers Hardness Tester (0.1~5Kgf; 8-2900HV)

Test force: 0.1Kgf(0.98N), 0.2Kgf(1.96N), 0.3Kgf(2.94N), 0.5Kgf(4.90N), 1.0Kgf(9.8N),

2.0Kgf(19.6N), 2.5Kgf(24.5N), 3.0Kgf(29.4N), 5.0Kgf(49.0N)

Hardness scale: HV0.1, HV0.2, HV0.3, HV0.5, HV1, HV2, HV2.5, HV3, HV5

Hardness conversion: HRA, HRB, HRC, HRD, HRF, HV, HK, HBW, HR15N, HR30N, HR45N, HR15T, HR30T, HR45T

Min measuring unit: 0.01µm

Hardness range: 8-2900HV (or8-4000HV)

Magnification: 100X (measurement), 200X (measurement) Both lens can do observe and measurement work directly

Dwell time: 0-99s (1 second per step)

Data output: Test data display on LCD screen, can save to U-flash in Excel format

Test space: 180mmx160mm (HeightxDepth)

Power supply: AC220V±5%, 50-60Hz

Standard: ISO6507, ASTME92, JISZ2244, GB/T4340.2

Overall dimension: 580*240*660mm

Net weight: about 50Kg

Packing size: 800x470x800

Gross weight: 76kg

Standard Accessories：

Main Instrument x 1

USB flash disk x 1

Middle, Large, V shape testing table Each x 1 Power Cord x 1

Vickers hardness block x 2

10×Digital Micro Eyepiece x 1

10X objective lens x 1

Spare Fuses (2A) x 2

20X objective lens x 1

Production certificate x 1

Regulating Screw x 4

Warranty card x 1

Dust cover x 1

Manual book x 1
