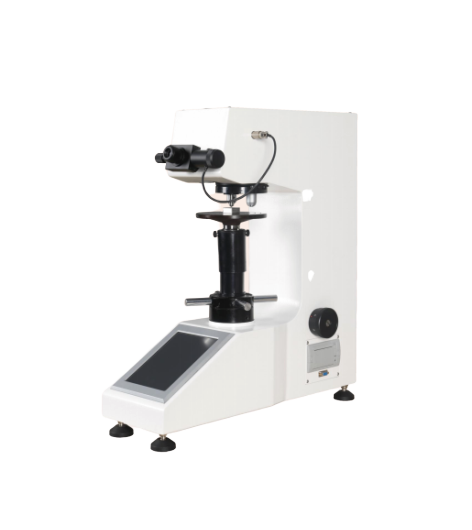

EBP DV-10AT-8 Weights Type Touch Screen Digital Macro Vickers Hardness Tester (8-2900HV; Automatic turret)

Hardness Scale: HV0.3, HV0.5, HV1, HV3, HV5, HV10

Test Force:

0.3kgf, 0.5kgf, 1kgf, 3kgf, 5kgf, 10kgf

2.94N, 4.90N, 9.80N, 29.4N, 49N, 98N

Hardness conversion: HRA, HRB, HRC, HRD, HRF, HV, HK, HBW, HR15N, HR30N, HR45N, HR15T, HR30T, HR45T

Hardness range: 8-2900HV

Force loading: Automatic loading - dwell - unloading

Magnification: Standard: 100X, 200X

Dwell time: 0-99S

Standard: ISO 6507, ASTM E92, JIS Z2244, GB/T 4340.2

Automatic turret
