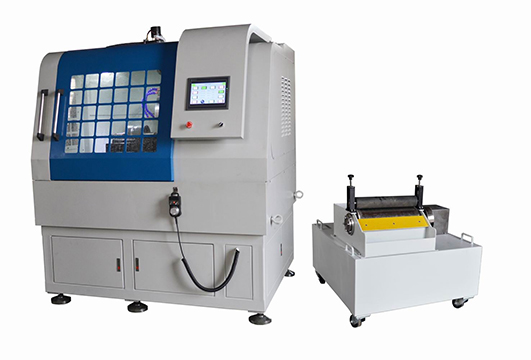

EBP CM-4 Metallographic Cutting Machine

Control Mode:Manual / Automatic, three axis linkage, 10 inch touch screen control, Can be switched to the operating handle wheel

Feature:Automatic drain system, alarm system, double LED lighting, red laser positioning

Feeding Speed:3mm/min, 5mm/min, 8mm/min, 12mm/min (users may modify the set speed according to requirement)

Cutting Disc Size:Φ380×2.8×Φ32 mm

Work Table Dimension (X*Y):450×350 mm

Y axis Maximum Travel Distance:250 mm

X axis Maximum Travel Distance:100 mm

Z axis Maximum Travel Distance: 160 mm

Max. Cutting Section:120×100 mm

Fixture Caliber:120 mm

Frequency Conversion Motor:5.5kw, Rotating speed: 500-2800 r/min

Feeding Motor:Servo motor

Volume of the Water Tank: 120L

Dimensions:1400×1000×1850mm

Weight:1800kg

Cutting Disc Size:Φ400×3×Φ32 mm

Work Table Dimension (X*Y): 485×400 mm

Y axis Maximum Travel Distance:300 mm

X axis Maximum Travel Distance:100 mm

Z axis Maximum Travel Distance:230 mm

Max. Cutting Section:200x 120 mm

Fixture Caliber:200 mm

Frequency Conversion Motor:7.5kw, Rotating speed: 500-2800 r/min

Feeding Motor:Servo motor

Volume of the Water Tank: 120L

Dimensions:1550×1100×1900mm

Weight:2200kg

Cutting Disc Size:Φ400×3×Φ32 mm

Work Table Dimension (X*Y):530×630 mm

Y axis Maximum Travel Distance:420 mm

X axis Maximum Travel Distance:110 mm

Z axis Maximum Travel Distance:230 mm

Max. Cutting Section:300×150 mm

Fixture Caliber: 300 mm

Frequency Conversion Motor:7.5kw, Rotating speed: 500-2800 r/min

Feeding Motor:Servo motor

Volume of the Water Tank: 120L

Dimensions: 1650×1350×1900mm

Weight:2500kg
