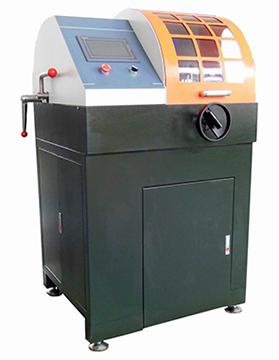

EBP CM-3 Metallographic Cutting Machine (2.2kw,500-3000rpm)

Operation Mode: Manual / Automatic, free to choose.

Feeding Speed: 3mm/min, 5mm/min, 8mm/min (users may modify the set speed according to requirement)

Y axis Maximum Travel Distance: 250mm

Z axis Maximum Travel Distance: 35mm (cut style)

Maximum Cutting Diameter: Φ65mm

Capacity of the Cooling Water Tank: 60L

Motor: 2.2kw

Rotating Speed: 500-3000r/min

Power Supply: 380V, 50Hz

Dimensions: 800×760×1370mm

Weight: 280kg

Three-phase Five-wire 380V 50Hz: A, B, C, N, PE
