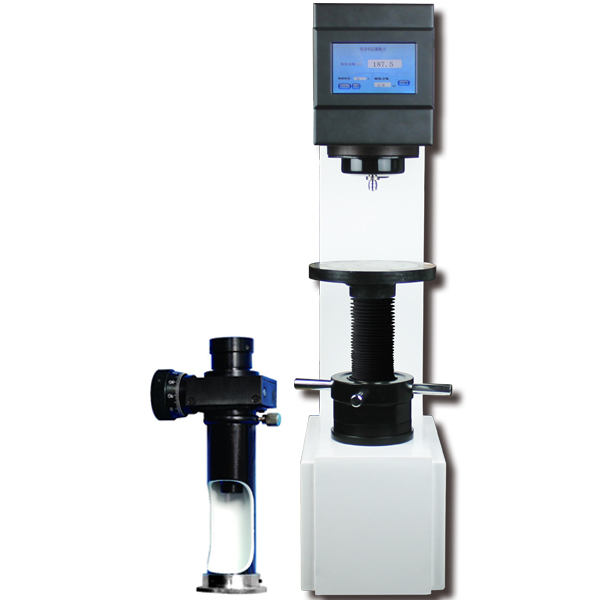

EBP B-3000D Digital Brinell Hardness Tester (8-650HBW)

Brinell Scale:HBW2.5/62.5, HBW2.5/187.5, HBW5/62.5, HBW5/125, HBW5/250, HBW5/750, HBW10/100, HBW10/1500, HBW10/3000, HBW10/250, HBW10/500, HBW10/1000

Test Force:62.5kgf(612.9N), 100kgf(980.7N), 125kgf(1226N), 187.5kgf(1839N), 250kgf(2452N), 500kgf(4903N), 750kgf(7355N), 1000kgf(9807N), 1500kgf(14710N), 3000kgf(29420N)

Test space:230*155mm (H*D)

Measure Resolution:0.5%

Test force accuracy:62.5-250Kgf ≤ 1% ; 500-3000Kgf ≤ 0.5%

Dwell time:1-60s

Test range:8-650HBW

Magnification of Microscope:20X

Standard:BSEN 6506, ISO 6506, ASTM E10, GB/T231

Data display:LCD touch screen

Power supply:AC220 ±5%, 50-60Hz

Dimension:Machine: 540*190*750mm; Package: 680*410*925mm

Weight:Net weight: 100kg; Gross weight: 130kg

Standard Accessories:

Measurement microscope1

Diameter 2.5, 5, 10mm Hard Alloy Steel Ball IndenterEach 1

Standard Hardness Blocks (HBW10/3000, HBW10/1000, HBW2.5/187.5）3

Large, Medium, “V-shape Testing TableEach 1

Power Cable1

Quality Certificate, Warranty cardEach 1

Fuse 2A2

Manual book1
