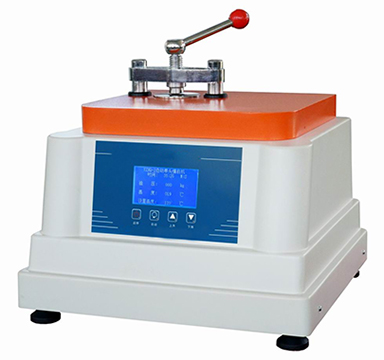

EBP MP-1D Mounting press with water cooling

Mold Diameters: Φ22mm, Φ30mm, Φ45mm (choose one)

Heater Specification: 220V, 2kw (Φ45mm); 220V, 1.2kw (Φ22mm/Φ30mm)

System Pressure: 0~18MPa (The default system pressure is 16MPa.)

Temperature Setting Range: 0~180℃ (The default setting temperature is 120℃.)

Holding Time: 2min20s

Cooling Method: Automatic water cooling

Power Supply: 220V, 50Hz

Dimensions: 520×480×520mm

Weight: 60kg
