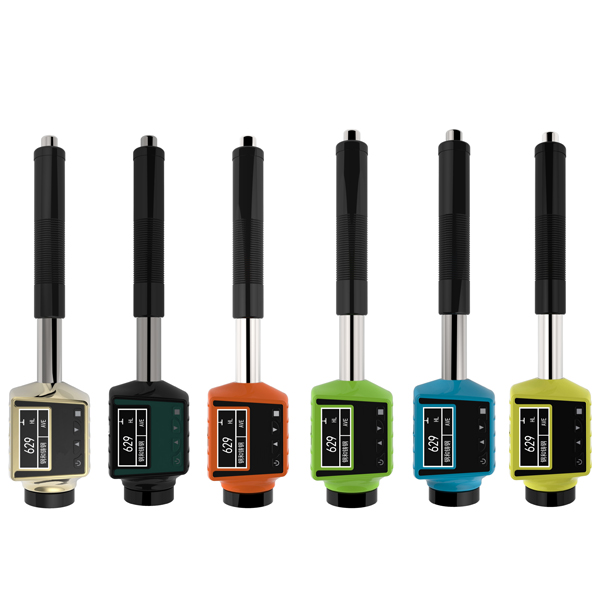

EBP L-5Pro Pen Type Portable Leeb Hardness Tester

Keys Menu: Yes

Data Store: 270

Probe: D

Testing Block: Optional

Hardness Standards: HL, HV, HRA, HRC, HRB, HB, HV, HS

Applicable materials: Steel and cast steel, alloy tool steel, stainless steel, gray cast iron, nodular cast iron, cast aluminum alloy

Impact Direction: 360º

Testing direction:Highly accurate in any impact direction

Testing Range:(170-960)HLD,(17.9-69.5)HRC,(19-683)HB,(80-1042)HV,(30.6-102.6)HS, (59.1-88)HRA, (13.5-101.7)HRB

Hardness Standards:HL, HV, HRA, HRC, HRB, HB, HV, HS

Accuracy:HLD: ±0.5% (800HLD)

Repeatability Value:HLD: 0.8% (800HLD)

Resolution:128×64 OLED display

Dimensions:148mm×40mm×30mm

Power Supply:Rechargeable lithium battery

Working Hours:About 10 hours

Working Conditions:Operating temperature: 10-50 c; Storage temperature: -30 ℃ -60 ℃; Humidity: 90% max;

Applicable Materials: Steel and cast steel, alloy tool steel, stainless steel, gray cast iron, nodular cast iron, cast aluminum alloy, copper zinc alloys (brass), an alloy of copper and tin, copper(bronze)

Application:

Bearings and other parts;

Failure analysis of pressure vessel, steam turbine generator group and equipment;

Heavy workpieces;

Mechanical or permanent assembly installed;

The test space is very narrow;

Standard Equipped:

The instrument host 1 pc

The nylon brush 1 pc

Small bearing rings 1 pc

The ABS instrument 1 pc
