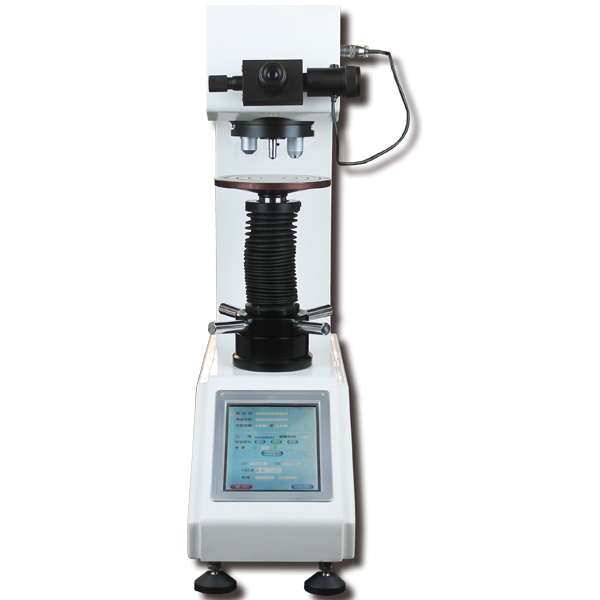

EBP B-62.5DT Low Load Digital Brinell hardness tester

Test Force (Kg):1, 2.5, 5, 6.25, 10, 15.625, 25, 30, 31.25, 62.5 Total 10 types

Ball Diameter (mm):5mm，2.5mm，1mm

Test force:Automatic unloading test force

Test force dwell time:0 ~ 60S (one unit per second)

Objective magnification:5X, 10X

Illumination:Exterior lighting, each lens comes with a light source

Eyepiece magnification:10 × (automatic digital encoder)

Minimum test unit:0.25μm

Data correction:Each lens, automatic correction respectively

Hardness test range:4-650HBW

Test space:180*160mm (H*D)

Data output:U disk

Power supply:AC220V+5%，50-60Hz

Dimensions:720*190*650mm

Weight:40Kg Standard

Accessories：

Digital measuring eyepiece1

Brinell Hardness block2pcs

Power cord1

Large, medium, V-type testing bench1 Each

USB flash disk1

Fuses2pcs

Manufacturer certificate1

Operation Instruction1
