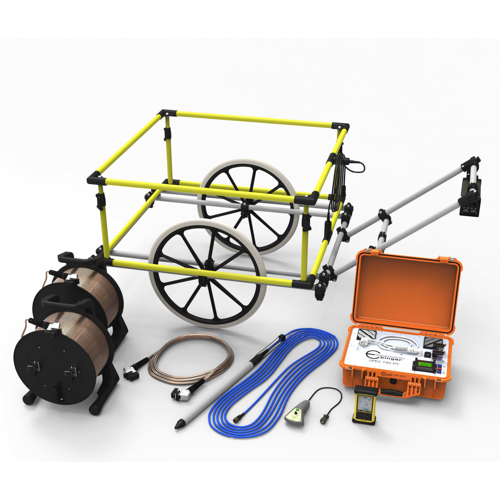

Ebinger UPEX® 745 P²I ລະບົບ PI ທີ່ຢູ່ກັບທີ່
Power supply
Power generator 230V/ 0.9 kW: approx. 8 h (without refuel)
Rechargeable battery 2 x 12V, 7.2 Ah: approx. 2.5 h
Dimensions
Power generator: approx. 450 mm x 240 mm x 380 mm
Transmitter, cased: approx. 486 mm x 392 mm x 192 mm
Transmitter loop, 20 m x 20 m, on 1 reel: approx. 500 mm x 380 mm x 300 mm
Transmitter loop, 40 m x 40 m on 2 reels: approx. 500 mm x 380 mm x 300 mm
Standard borehole probe: approx. 800 mm x 40 mm
Case with receiver and accessories: approx. 820 mm x 330 mm x 155 mm
Weight
Power generator: approx.13.0 kg
Transmitter, cased, with rechargeable batteries: approx.14.0 kg
Transmitter loop, 20 m x 20 m, on 1 reel: approx.18.5 kg
Transmitter loop, 40 m x 40 m, on 2 reels: approx.18.5 kg (each)
Standard borehole probe: approx.1.3 kg
