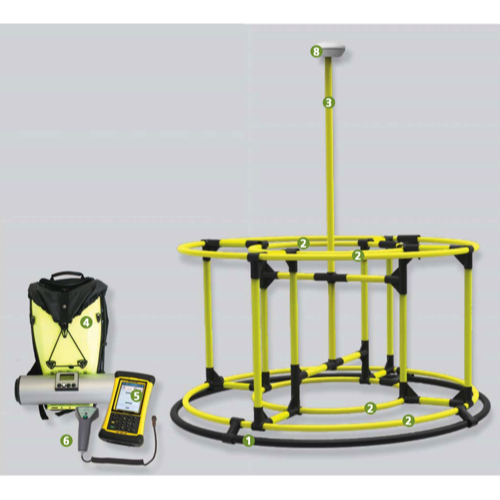

Ebinger UPEX® 745 DF Advanced TDEM Pulse Induction System (± (0.1-5000)mV)
Measurement principle: Time domain Transient electromagnetics (TDEM)
Time window: 8 measuring channels/ 5 time gates
Transmitter signal: unipolar rectangular
EM transmitter: vertical dipoles, decoupled coil, Ø 1400 mm
EM receiver:
4 decoupled coils
2 decoupled coils, Ø 1300 mm
2 decoupled coils, Ø 700 mm
Vertical spacing of receiver coils: 800 mm
Transmitter current: ≥ 22 A
Transmit moment: ≥ 400 Am2
Measurement range: ± (0.1-5000)mV
Dynamic range: ≥ 16 bits
Measurement frequency: 90-130 Herz, selectable
Signal evaluation: Individually or at any difference required
Power supply:
System-integrated or external
Internal lithium battery 24 V (2 x 4 h operating time with 2 batteries)
Charging time approx. 4 h for the internal batteries
External power supply 24 V (e.g. car battery)
Electronic/control unit: System-integrated or separable
Startup time: approx. 5 min
