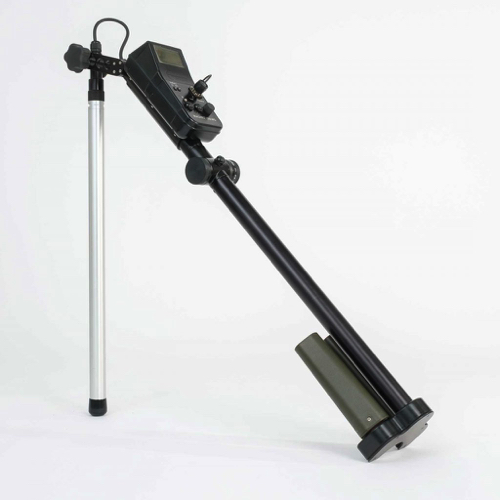

Ebinger MAGNEX® 120 LWD ເຄື່ອງຊອກຫາຄວາມຜິດປົກກະຕິທາງແມ່ເຫຼັກ/ເຄື່ອງຊອກຫາລະເບີດ (± 20,000 nT/m)
Power Supply Battery:
2 x rechargeable lithium battery pack
3 x Mono D-Cell LR20 1.5 V battery tubes (optional)
Operation time*: approx. 55 - 60 hours (lithium battery pack)
*depends on the temperature and quality
of the batteries / rechargeable batteries
used.
Temperature resistance
Storage: - 40 °C to + 85 °C
Operation: - 25 °C to + 65 °C
Optical indication: Pointer instrument (LC display with switchable backlight)
Scale ranges: ± 20 scales
Measurement value: Vertical difference of vertical components of magnetic flux
difference distance (base distance): approx. 430 mm
Measurement range: ± 20,000 nT/m
Bandwidth
Locator: DC 6 Hz
Sensor probe: 65 Hz
Acoustical indication
Loudness adjustable: Yes
Threshold: ± 2 scales
Modulation (Tremolo): Above ± 20 scales
Dimension: In military hard case (black): 1177 x 450 x 158 mm
Water protection: Humidity 95% at operating temperature (IP66)
Weight operational detector: approx. 3.4 kg (incl. lithium battery pack)
Storage weight: approx. 12.8 kg (incl. accessories)
