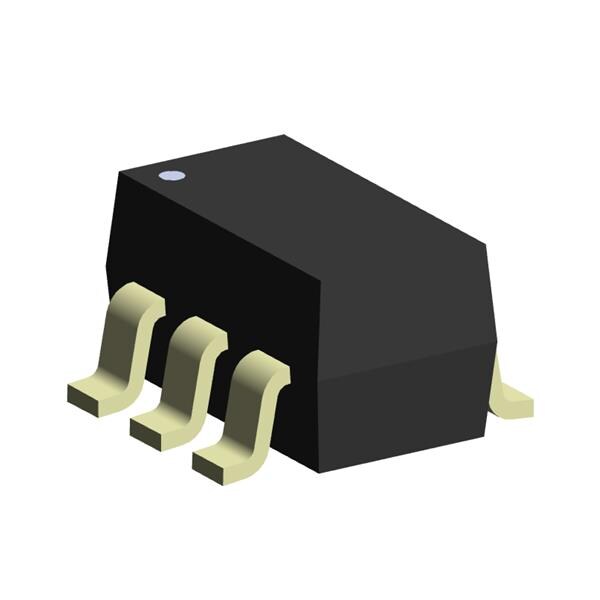

Eaton STS234050U160 ESD Suppressors TVS ESD SOT23-6L 5V

Polarity: Unidirectional

Unit Weight: 9 mg

Working Voltage: 5 V

Clamping Voltage: 24.8 V

Breakdown Voltage: 6 V

Termination Style: SMD/SMT

Moisture Sensitive: Yes

Number of Channels: 4 Channel

Cd - Diode Capacitance: 1.6 pF

Ipp - Peak Pulse Current: 15 A

Vesd - Voltage ESD Air Gap: 30 kV

Vesd - Voltage ESD Contact: 30 kV

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 55 C

Pppm - Peak Pulse Power Dissipation: 300 W
