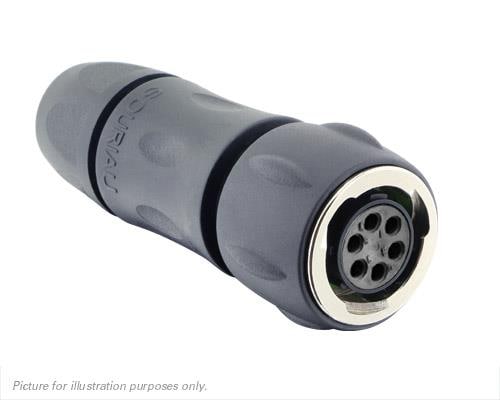

Eaton Souriau-Sunbank UTGX6JC106S ປລັກສ໌ Plug, ມີກະບອກສາຍສະຫນັບສະຫນູນ backshell, ສໍາລັບ 6 ຂໍ້ຕິດຕໍ່ຍິງ, IP68/69K

Color: Black

Diameter: 26.2 mm

IP Rating: IP65, IP67, IP69K

Shell Size: 10

Wire Gauge: 20 AWG

Shell Style: Straight

Thread Size: 9/16-24 UNEF

Mating Style: Bayonet

REACH - SVHC: Details

Mating Cycles: 500 Cycles

Contact Gender: Without Socket Contacts

Current Rating: 4.5 A

Housing Gender: Male

Mounting Angle: Straight

Mounting Style: Free Hanging

Shell Material: Polyamide (PA)

Voltage Rating: 250 V

Contact Plating: Gold

Contact Material: Brass

Termination Style: Crimp

Insert Arrangement: 6

Flammability Rating: UL 94 V-0

Number of Positions: 6 Position
